you're able to get the clean water
Basic Master
Features
- 5 Layers filtration process
- Ideal for domestic / household / restaurant use
- Fast and easy installation
- Economical and convenience
- Low maintenance
- Multi stage filtration
- Extend the life span of various water utensil and water heaters
- Food grade poly glass inner shell
- 5 Years warranty for pressure tank
- 1 Year warranty for MPV Valve
Model Definition
Multi Media with Multi Function provide clean & clear water
Mechanical Method
Nano Silica Sand
Size: 1.2 - 2.4 mm
Nano Silica Sand is an extremely effective
filter media able to hold back precipitates
containing impurities up to 10 micron (1.0mm)
Nano Silica Sand
Size: 0.8 - 1.2 mm
Nano Silica Sand is an extremely effective
filter media able to hold back precipitates
containing impurities up to 10 micron (1.0mm).
Filter sand size, angularity and hardness are
the important filter and characteristics to ensure proper filtrering
Nano Silica Sand
Size: 0.45 - 0.8 mm
Nano Silica Sand is an extremely effective
filter media able to hold back precipitates
containing impurities up to 10 micron (1.0mm)
Adsorption Method
Filter Coal Anthracite
- Easy Backwashing & Maintenance
- Unique density allows Anthracite to be combined with other filtration media in multi-media filters
- Higher service flows and longer filter runs than equivalent filters
- High mechanical strength
High Grade Activated Carbon
- Removal of taste, odor, chlorine, ozone, organic contaminants and bacteria from process water
- Protection for ion-exchange resins
- Replacement of sand in rapid Gravity Sand Filters
- Improvement of color, taste and odor of beverages
Advantages of Composite Fiber Glass(GFG)
Multi-port Manual Control Valve
THE SPECIAL MPV CONTROL VALVE WITH BY-PASS FUNCTION
Specifications
|
|
|
|
| |||||
|---|---|---|---|---|---|---|---|---|
|
|
Model | MPV Valve | Valve Size (mm) |
Tank Volume (L) | Tank Coating | Size H x D (inch) | Filter Media | Est. Service Life |
| BS2000 | Standard 3 Steps | 25 | 38 | No | 42 x 9 | 5 Layer | 1 - 2 Years | |
| BS3000 | Standard 3 Steps | 25 | 48 | No | 44 x 10 | 5 Layer | 1 - 2 Years | |
| BS4000 | Standard 3 Steps | 25 | 62 | No | 54 x 10 | 5 Layer | 2 - 3 Years | |
| BS5000 | Standard 3 Steps | 25 | 85 | No | 52 x 12 | 5 Layer | 3 - 4 Years | |
| BS6000 | Standard 3 Steps | 25 | 106 | No | 54 x 13 | 5 Layer | 4 - 5 Years |
Treatment Filtration Rate
| Model | Filtration Flow Rate
(Heavy) | Filtration Flow Rate
(Standard) | Filtration Flow Rate
(Light) | Backwash Flow Rate | |
| 24 m³ / hr / m² | 30 m³ / hr / m² | 36 m³ / hr / m² | 40 m³ / hr / m² | ||
| BS2000 | 12 lpm 0.72 m³ / hr | 16 lpm
0.96 m³ / hr | 19 lpm
1.15 m³ / hr | 21 lpm
1.28 m³ / hr | |
| BS3000 | 16 lpm
0.96 m³ / hr | 20 lpm
1.20 m³ / hr | 24 lpm
1.44 m³ / hr | 26 lpm
1.58 m³ / hr | |
| BS4000 | 20 lpm
1.20 m³ / hr | 25 lpm
1.50 m³ / hr | 30 lpm
1.80 m³ / hr | 33 lpm
2.00 m³ / hr | |
| BS5000 | 28 lpm
1.68 m³ / hr | 35 lpm
2.10 m³ / hr | 42 lpm
2.52 m³ / hr | 47 lpm
2.80 m³ / hr | |
| BS6000 | 32 lpm
1.92 m³ / hr | 40 lpm
2.40 m³ / hr | 48 lpm
2.88 m³ / hr | 53 lpm
3.20 m³ / hr |
* Model 2000 & 3000 will be less 20% because of low bed depth level
* Standard of Filtration Flow rate depend on water source quality
* Operating water pressure: 0.8 ~ 3.8 bar
* Standard of Filtration Flow rate depend on water source quality
* Operating water pressure: 0.8 ~ 3.8 bar
Certifications
International Association Certification

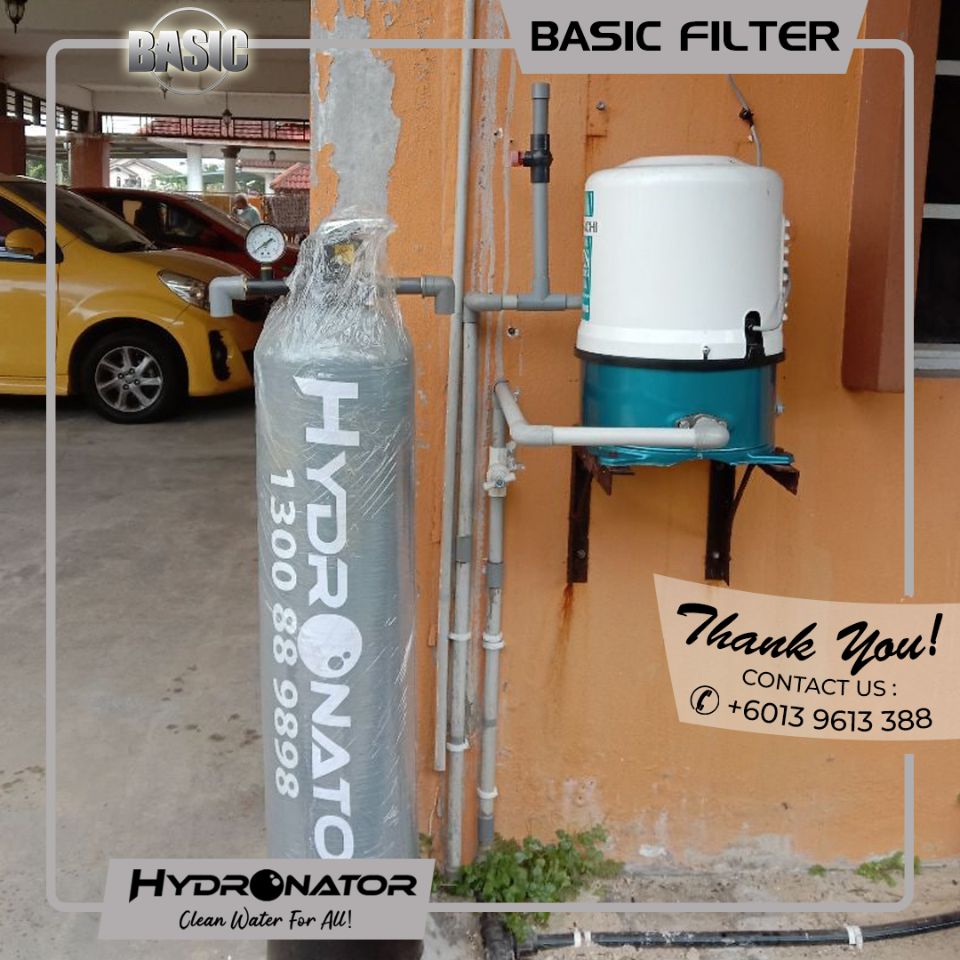

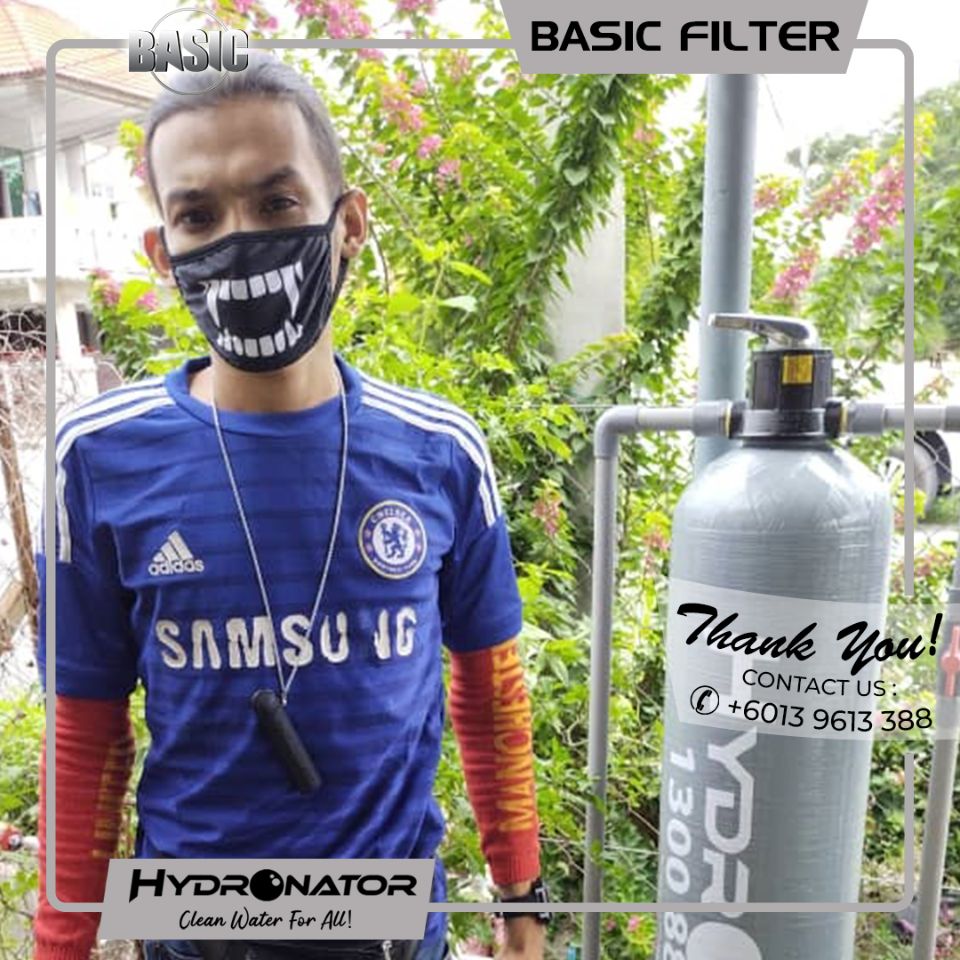

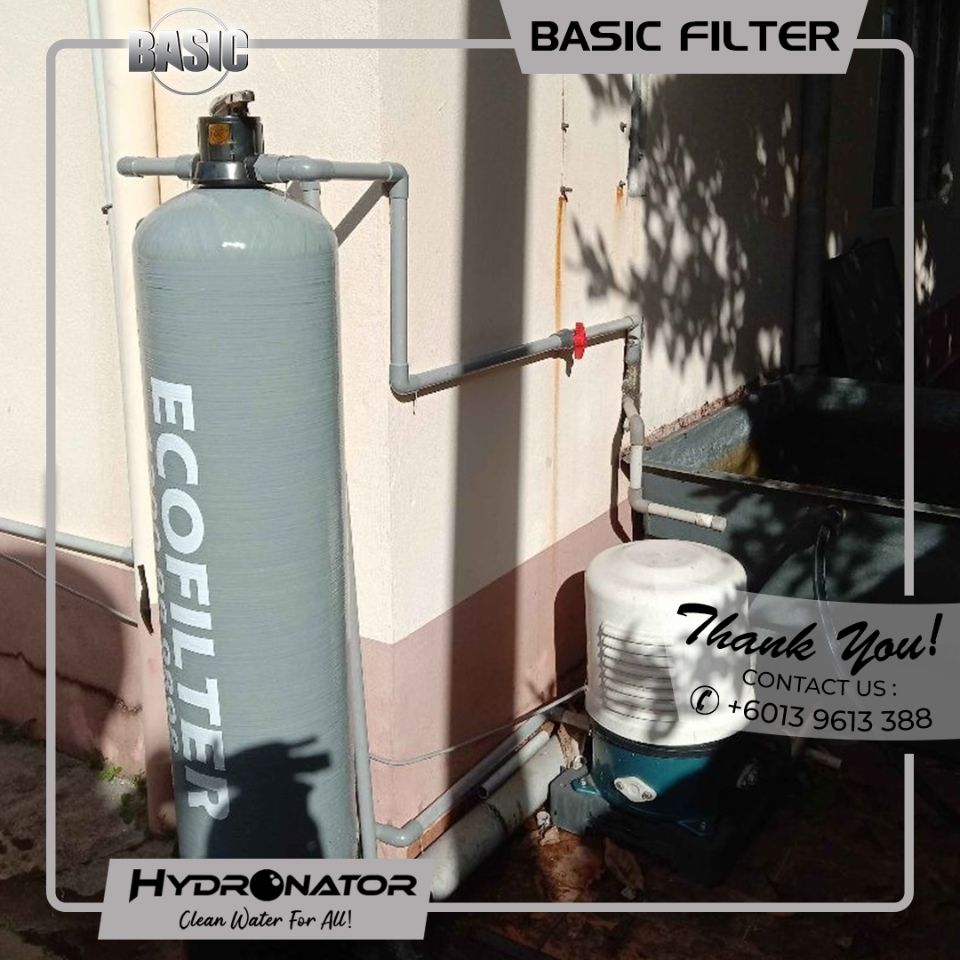

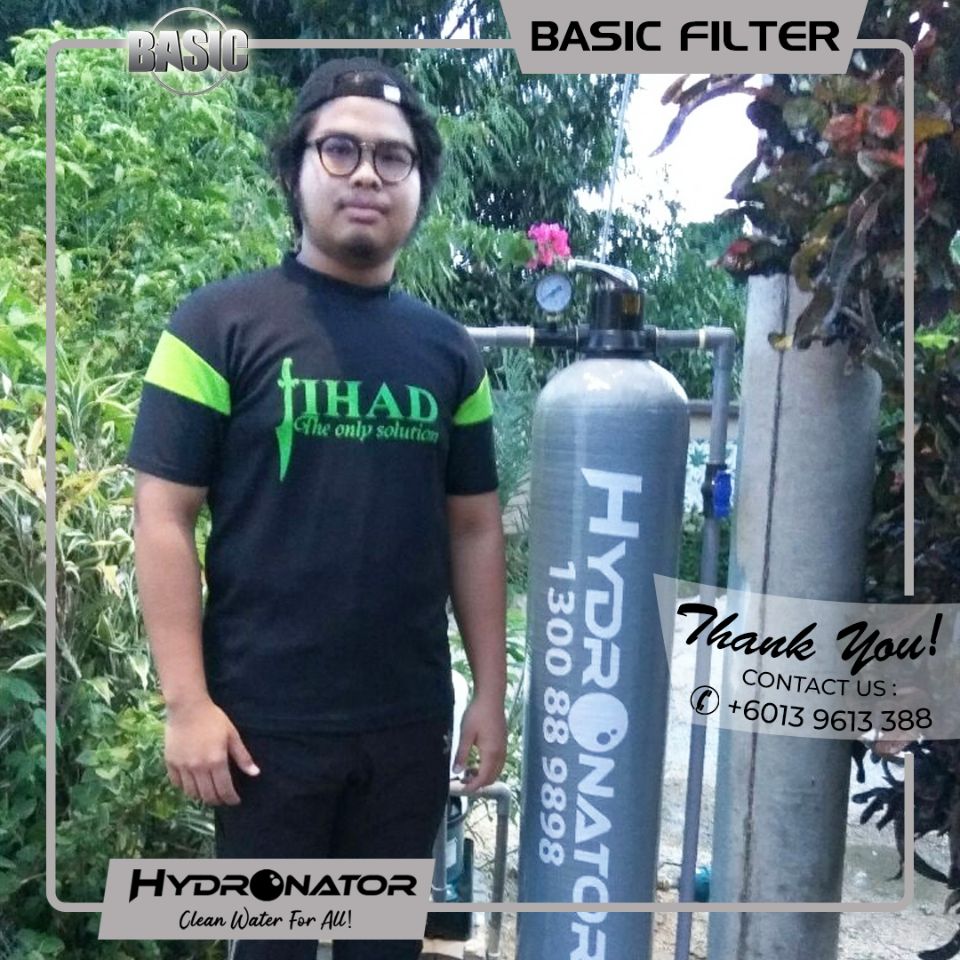

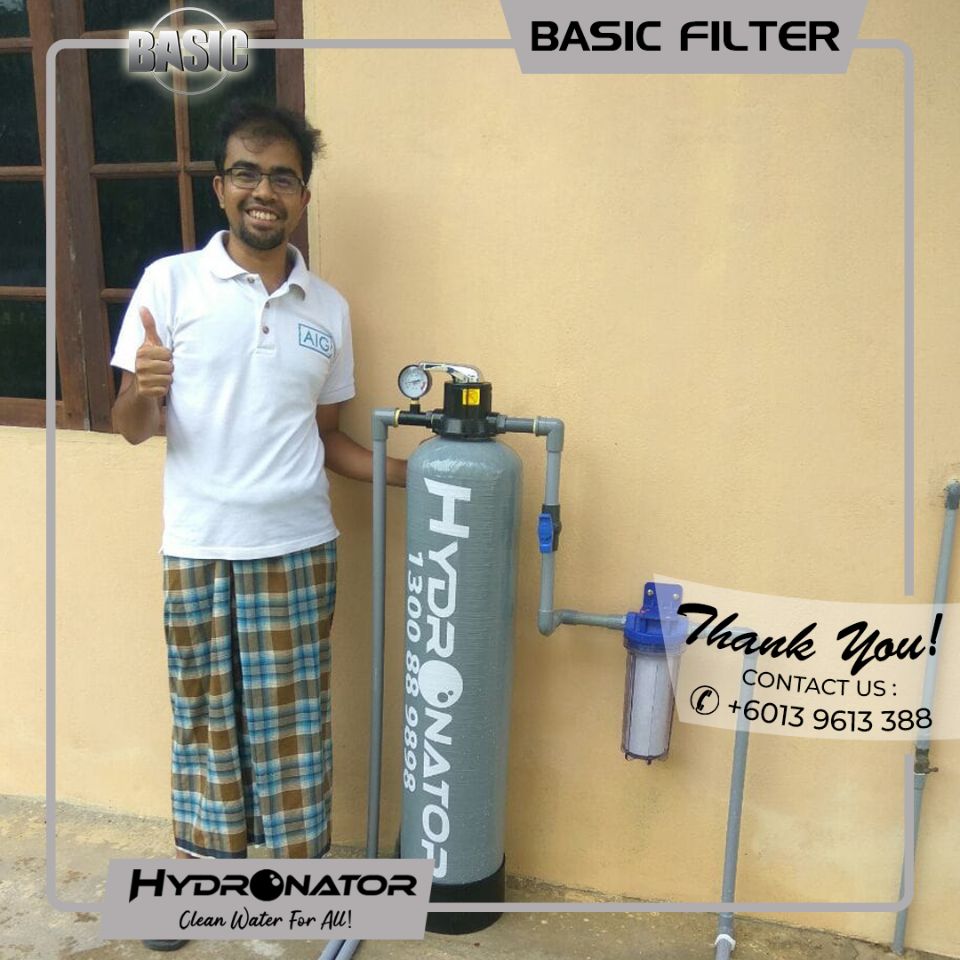

Sample Installation
