By using Master Filter,
you're able to get the clean water

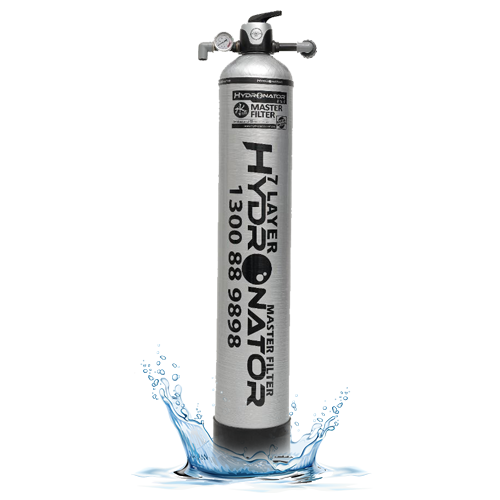

Silver Vessel Master
Features
- New 7 layers of filtration process
- Reasonable price
- Low Maintenance
- External Coating for enhance corrosion and UV resistant
- Low Transparency Prevent Algae & Bacterial Growth
- 12 Years warranty for pressure tank (Extended Warranty)
- 1 Year warranty for MPV Valve

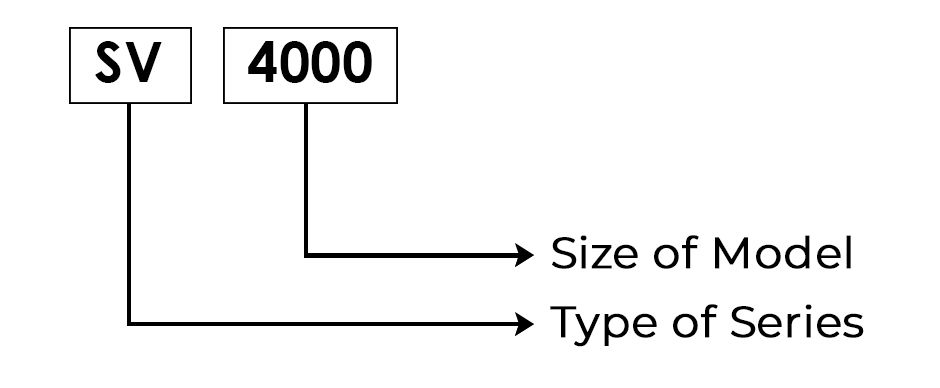

Model Definition
Multi Media with Multi Function provide clean & clear water
Mechanical Method
Nano Silica Sand
Size: 1.2 - 2.4 mm
Nano Silica Sand is an extremely effective
filter media able to hold back precipitates
containing impurities up to 10 micron (1.0mm)
Nano Silica Sand
Size: 0.8 - 1.2 mm
Nano Silica Sand is an extremely effective
filter media able to hold back precipitates
containing impurities up to 10 micron (1.0mm).
Filter sand size, angularity and hardness are
the important filter and characteristics to ensure proper filtrering
Nano Silica Sand
Size: 0.45 - 0.8 mm
Nano Silica Sand is an extremely effective
filter media able to hold back precipitates
containing impurities up to 10 micron (1.0mm)
Adsorption Method
Filter Coal Anthracite
- Easy Backwashing & Maintenance
- Unique density allows Anthracite to be combined with other filtration media in multi-media filters
- Higher service flows and longer filter runs than equivalent filters
- High mechanical strength
Zeroplus Filter Media
- Effective removes sands, muds, yeast and contaminant particles up to 0.05mm (5.0micron) Water which is clean for various household activities
High Grade Activated Carbon
- Removal of taste, odor, chlorine, ozone, organic contaminants and bacteria from process water
- Protection for ion-exchange resins
- Replacement of sand in rapid Gravity Sand Filters
- Improvement of colour, taste and odor of beverages
Functional Method
Anti Bacterial Ball
- Excellent anti-bacteria function
- Remove bad smell of water
- Prevent microbe's propagation
- Double function
Advantages of Composite Fiber Glass(GFG)
Multi-port Manual Control Valve
THE SPECIAL MPV CONTROL VALVE WITH BY-PASS FUNCTION
Specifications
|
|
|
|
| |||||
|---|---|---|---|---|---|---|---|---|
|
|
Model | MPV Valve | Valve Size (mm) |
Tank Volume (L) | Tank Coating | Size H x D (inch) | Filter Media | Est. Service Life |
| SV4000 | 4 Steps with By-pass | 25 | 62 | SILVER | 54 x 10 | 7 Layer | 2 - 3 Years | |
| SV5000 | 4 Steps with By-pass | 25 | 85 | SILVER | 52 x 12 | 7 Layer | 3 - 4 Years | |
| SV6000 | 4 Steps with By-pass | 25 | 106 | SILVER | 54 x 13 | 7 Layer | 4 - 5 Years |
Treatment Filtration Rate
| Model | Filtration Flow Rate
(Heavy) | Filtration Flow Rate
(Standard) | Filtration Flow Rate
(Light) | Backwash Flow Rate | |
| 24 m³ / hr / m² | 30 m³ / hr / m² | 36 m³ / hr / m² | 40 m³ / hr / m² | ||
| SV4000 | 20 lmp
1.20 m³ / hr | 25 lmp
1.50 m³ / hr | 30 lmp
1.80 m³ / hr | 33 lmp
2.00 m³ / hr | |
| SV5000 | 28 lmp
1.68 m³ / hr | 35 lmp
2.10 m³ / hr | 42 lmp
2.52 m³ / hr | 47 lmp
2.80 m³ / hr | |
| SV6000 | 32 lmp 1.92 m³ / hr | 40 lmp
2.40 m³ / hr | 48 lmp
2.88 m³ / hr | 53 lmp
3.20 m³ / hr |
* Standard of Filtration Flow rate depend on water source quality
* Operating water pressure: 0.8 ~ 3.8 bar
Certifications
International Association Certification

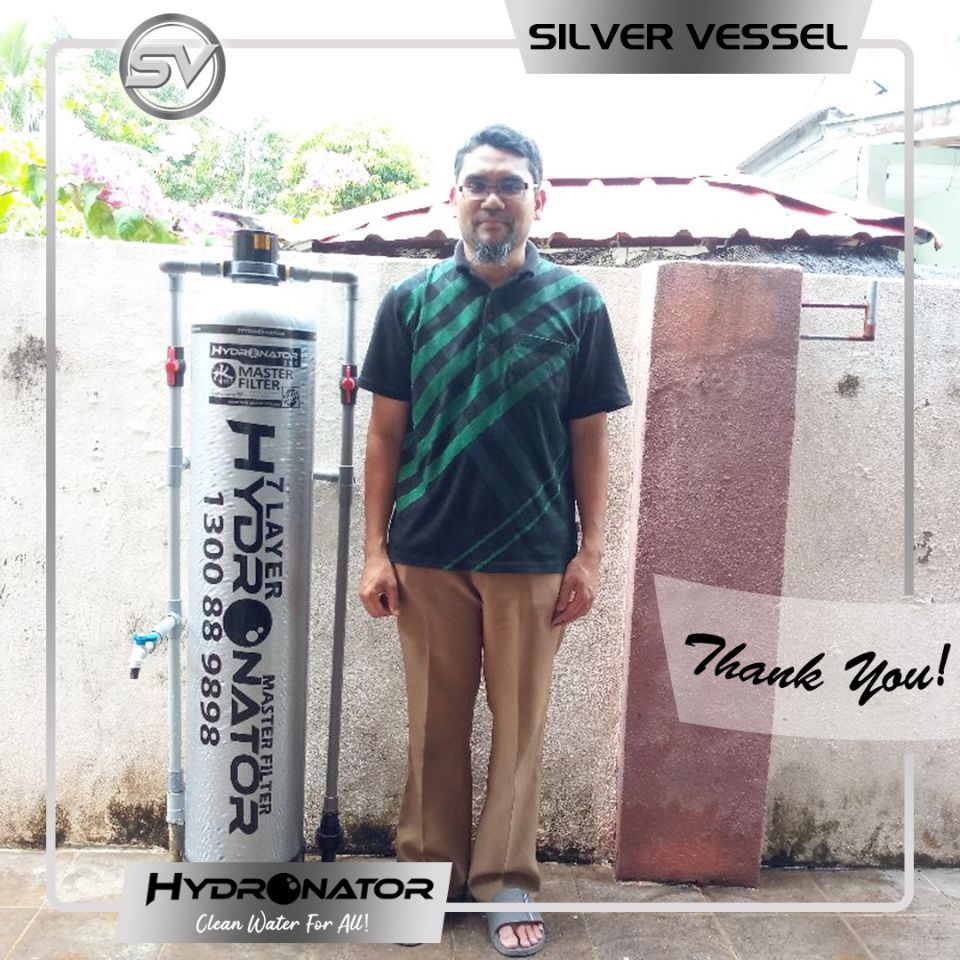

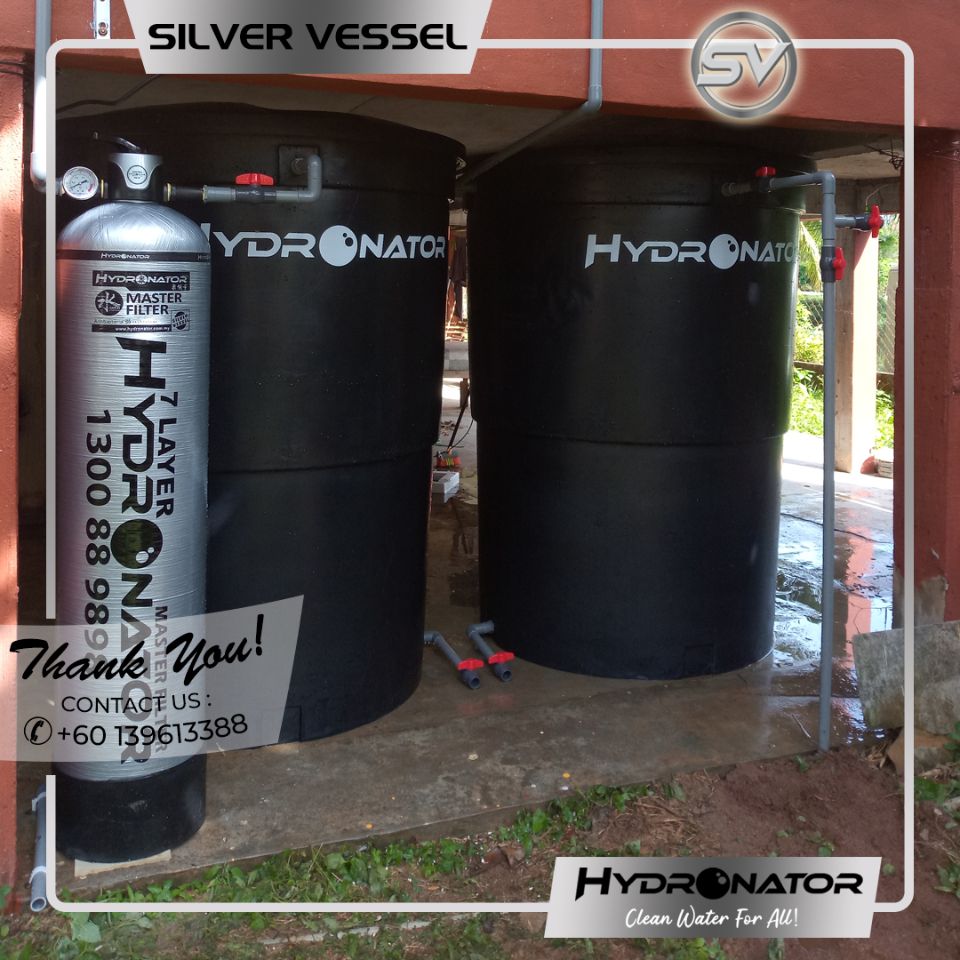

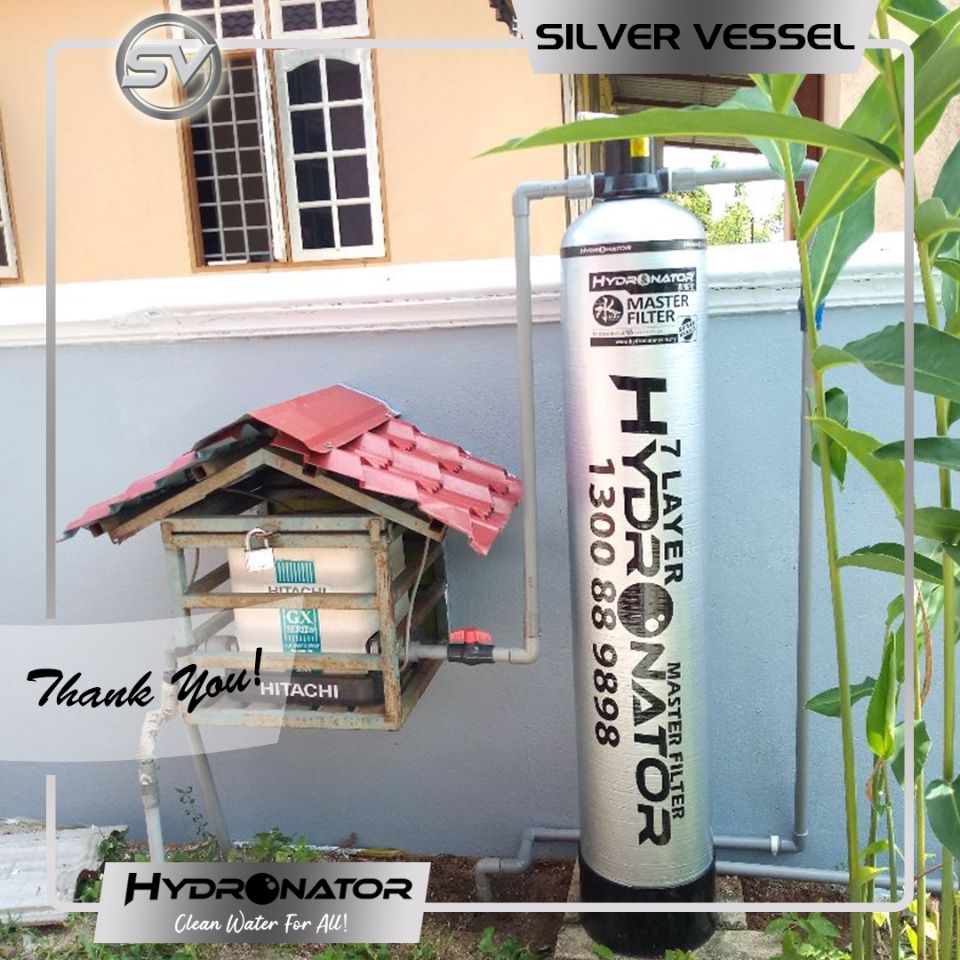

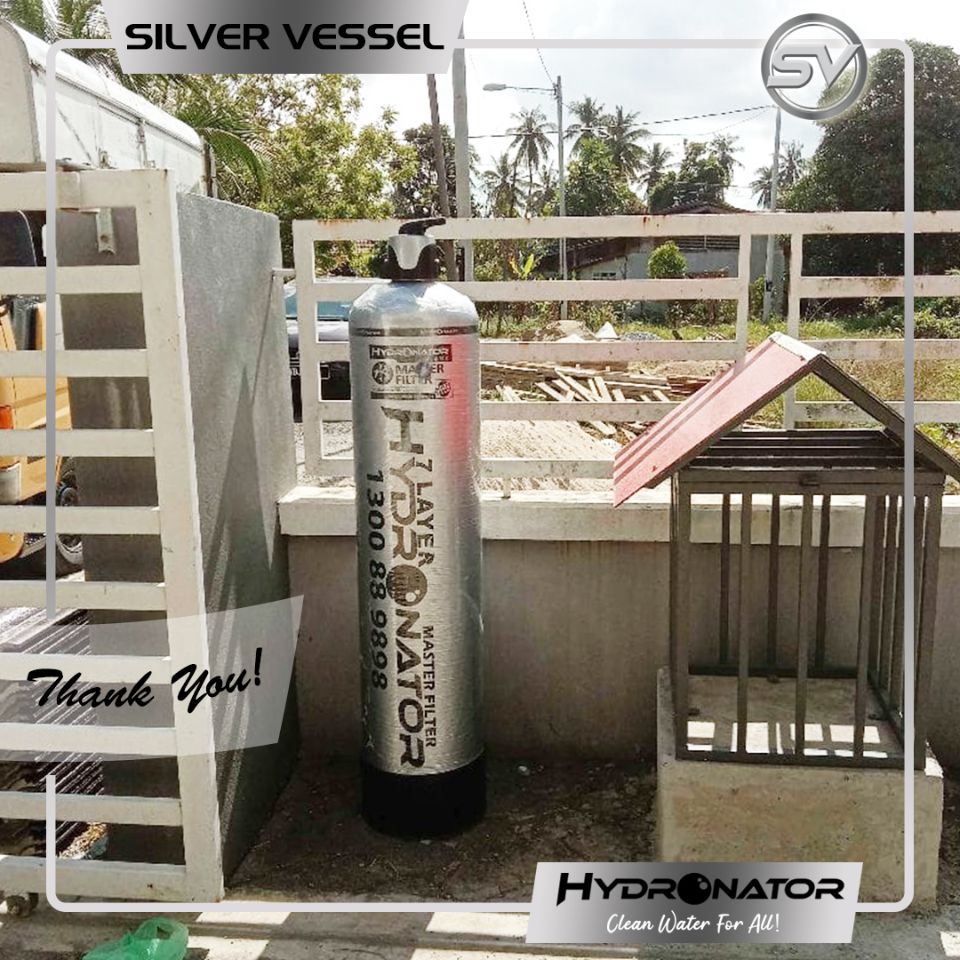

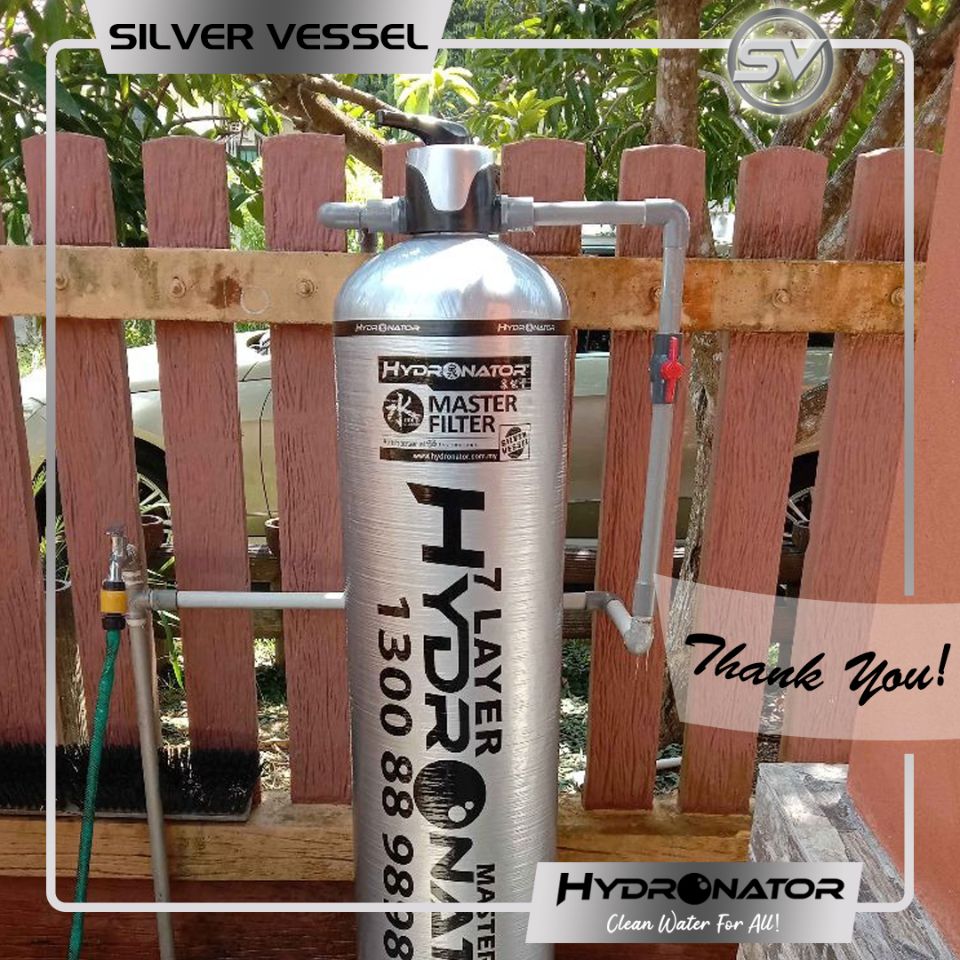

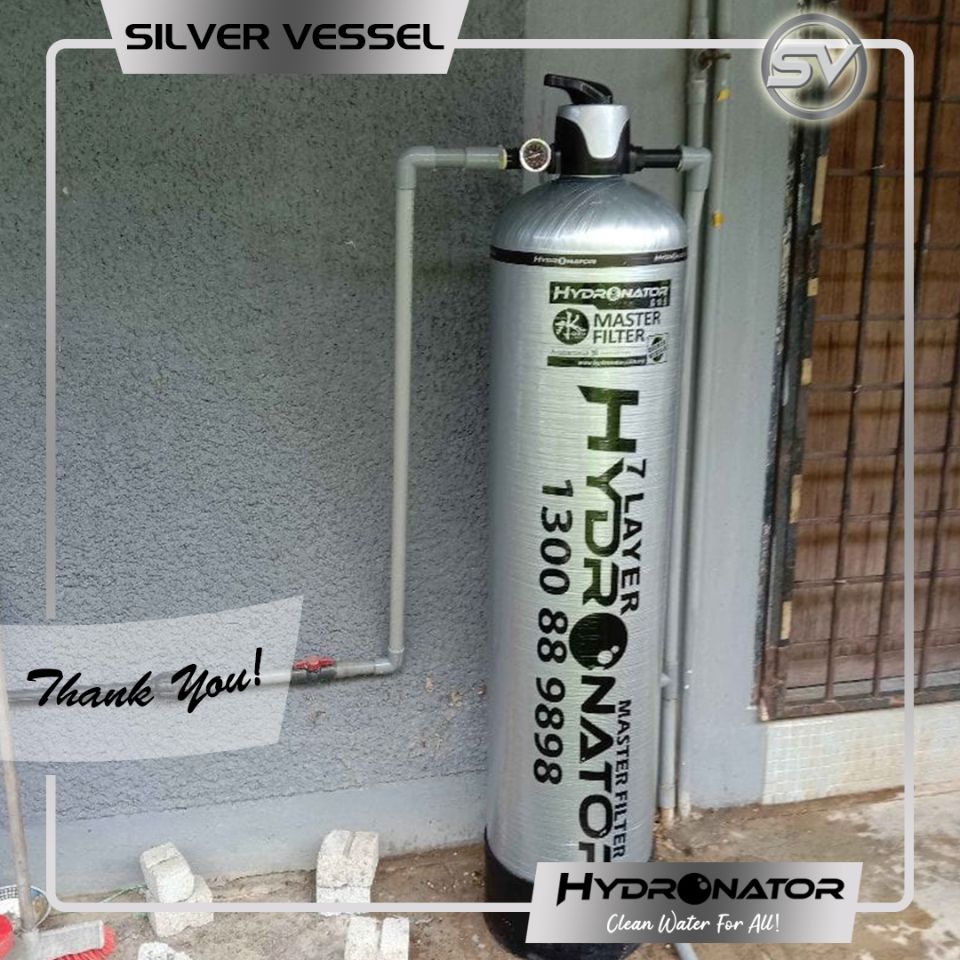

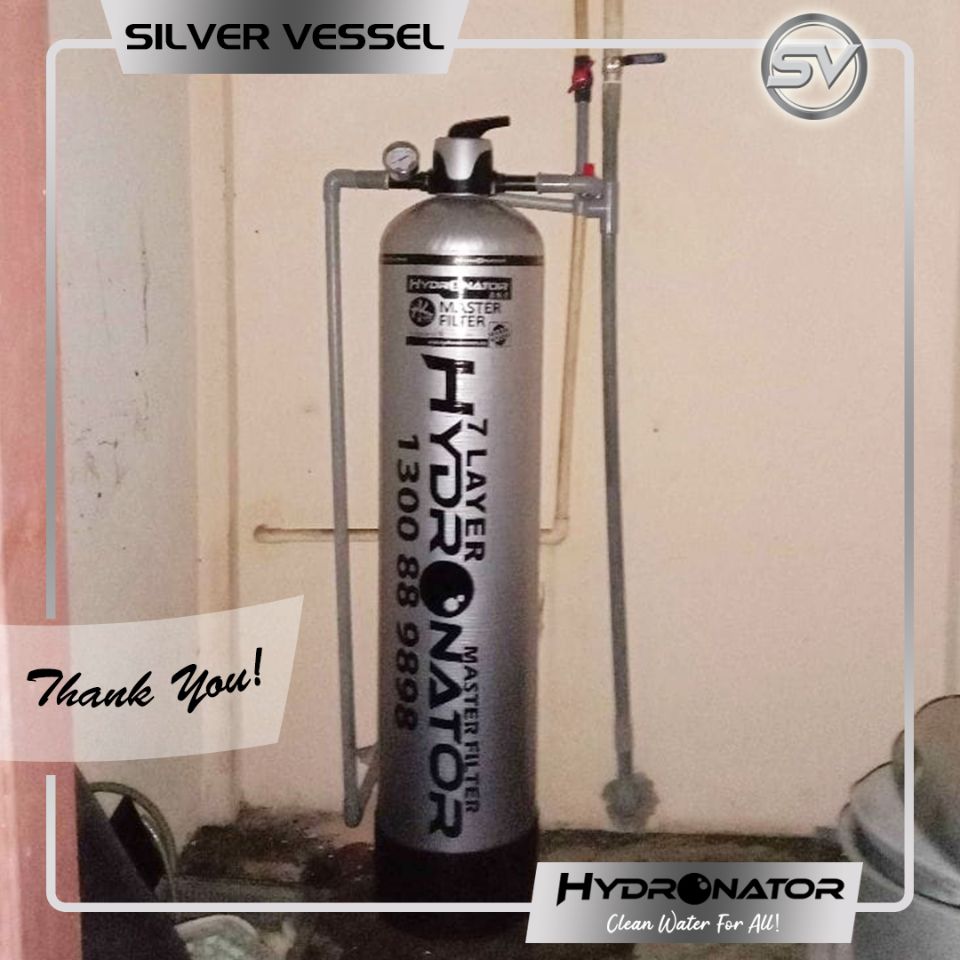

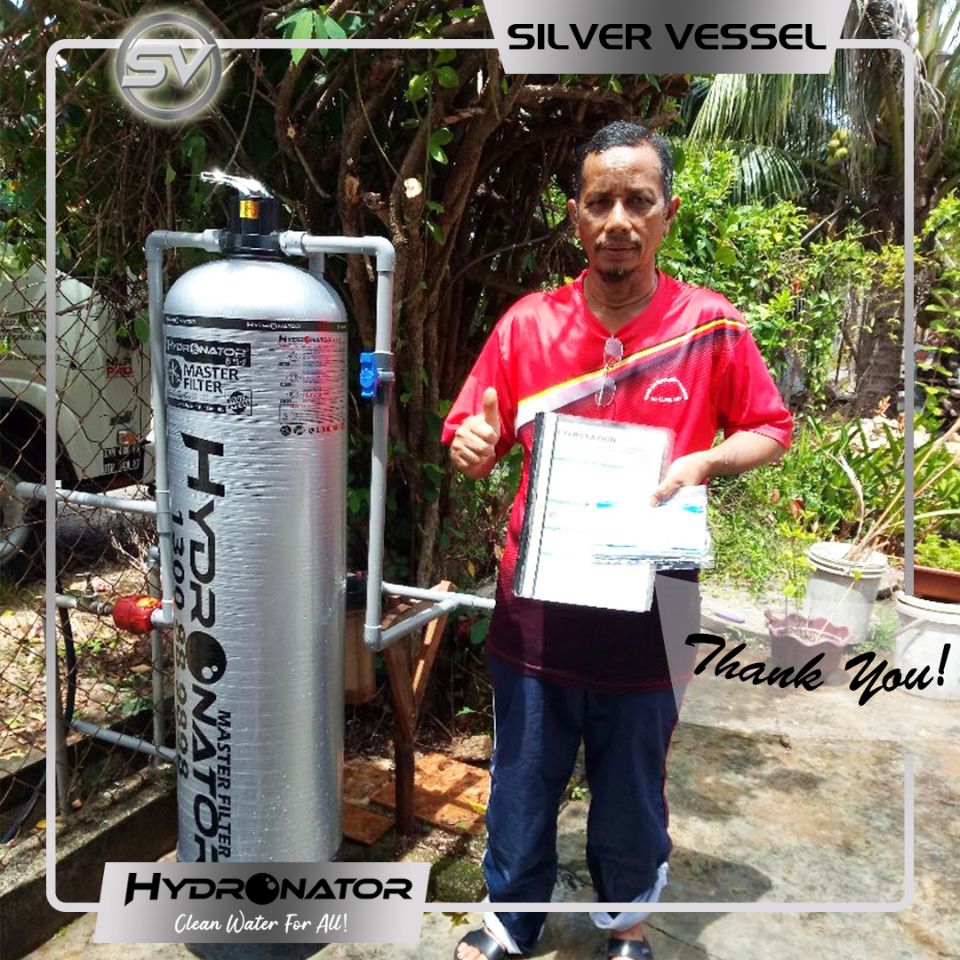

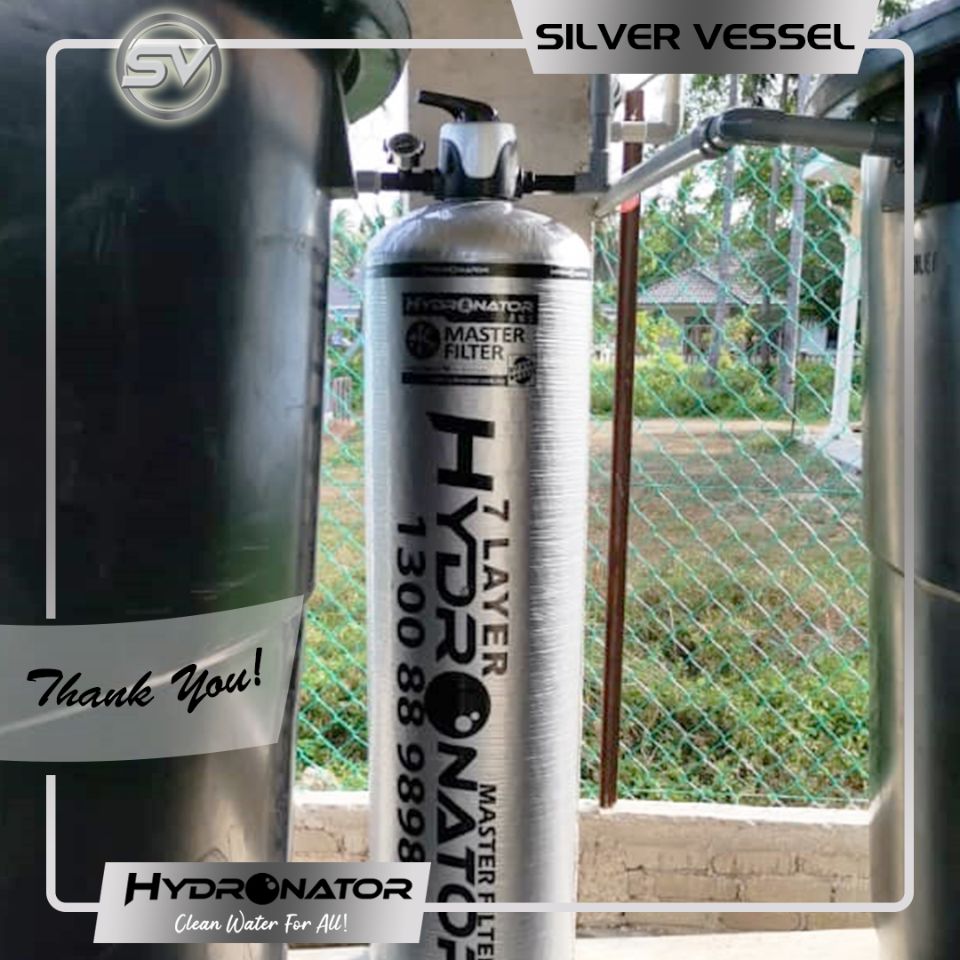

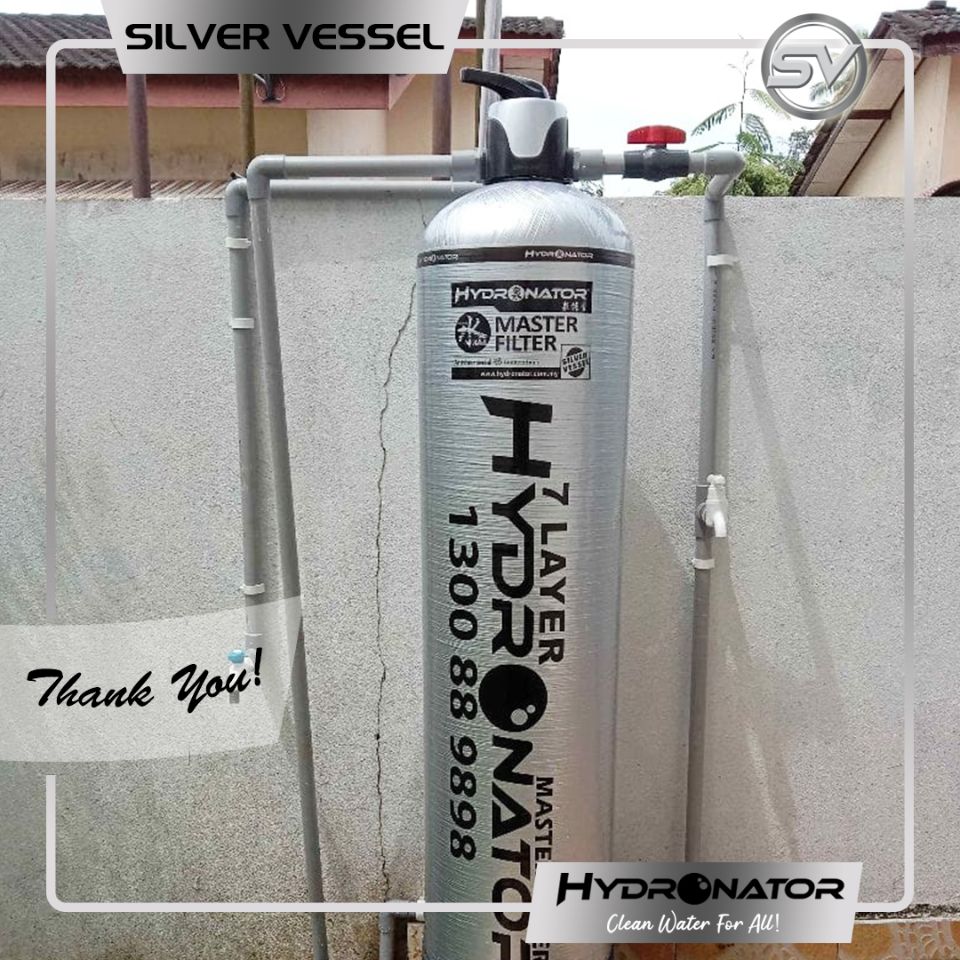

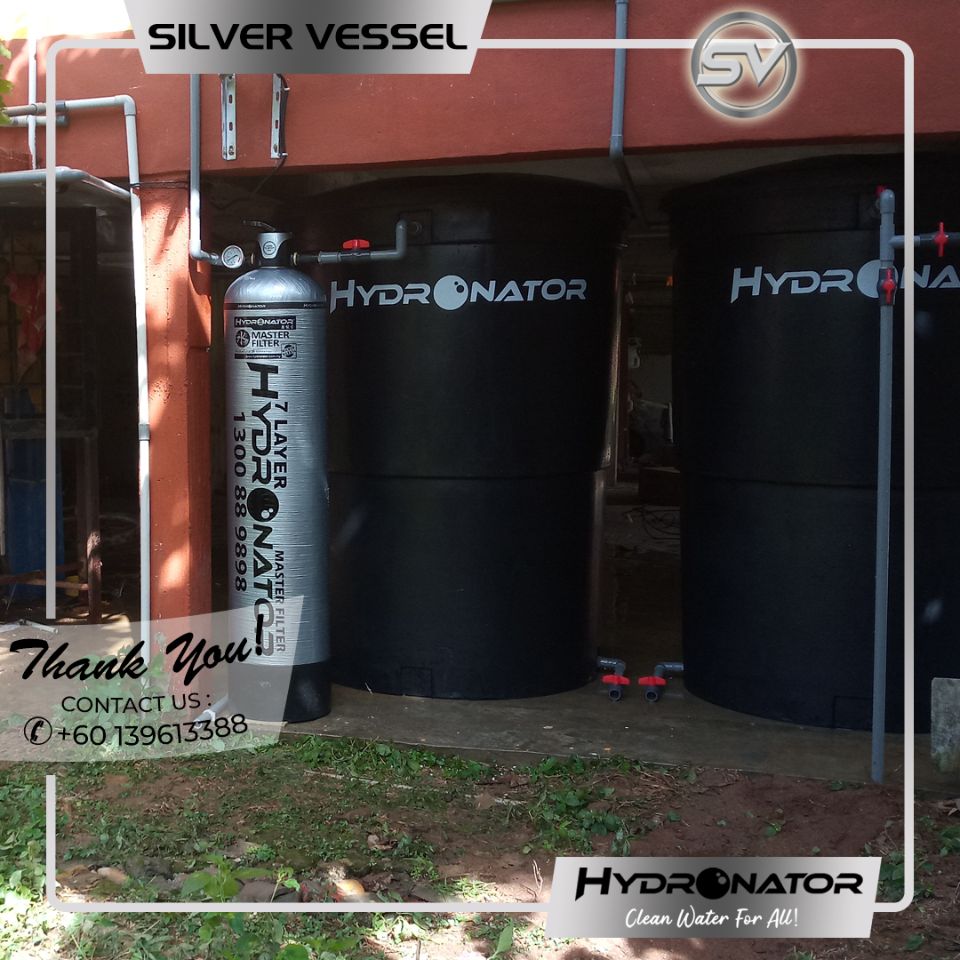

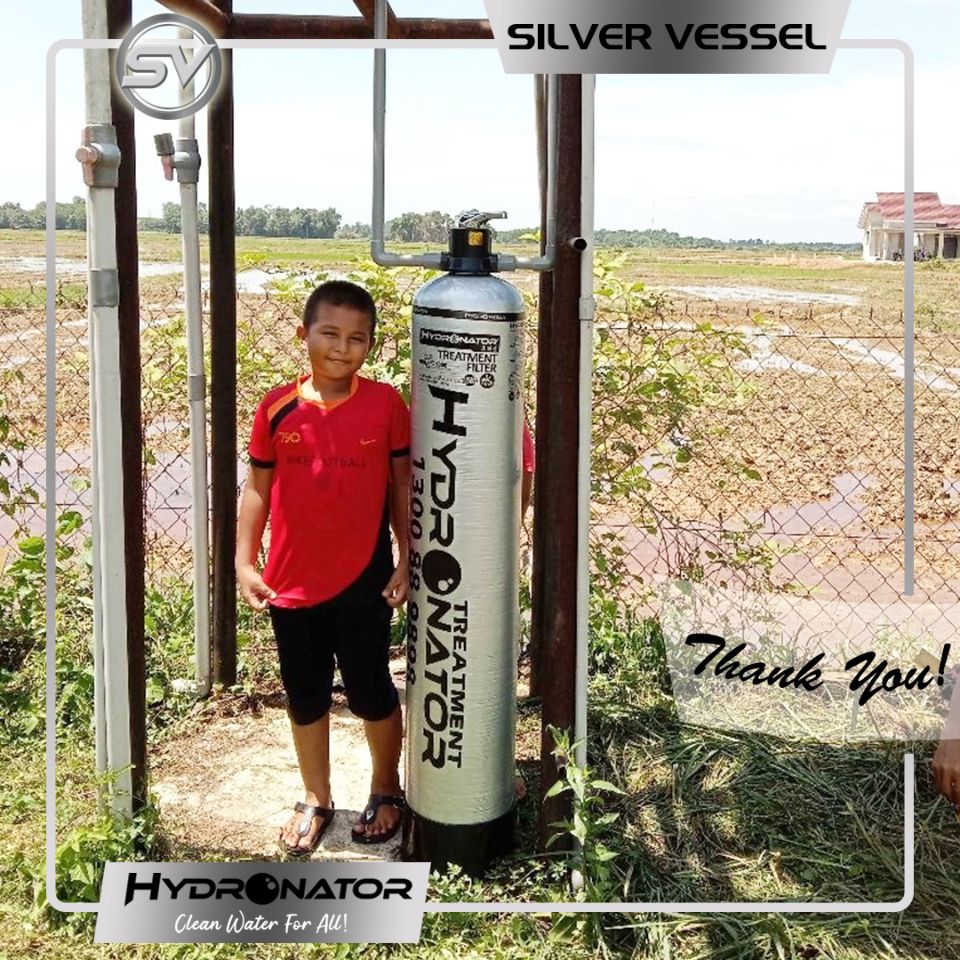

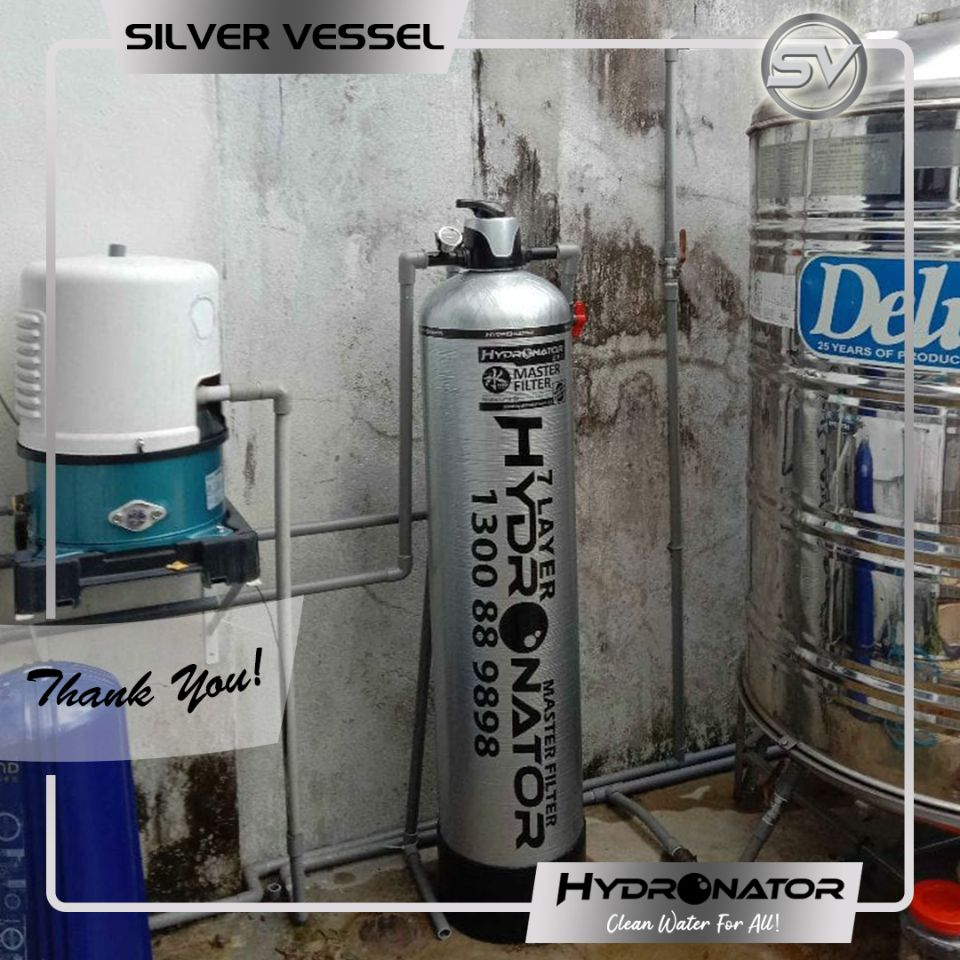

Sample Installation
