BASIC

TREATMENT FILTER

By using Treatment Filter,

you're able to get the clean water


Basic Treatment Filter

Features

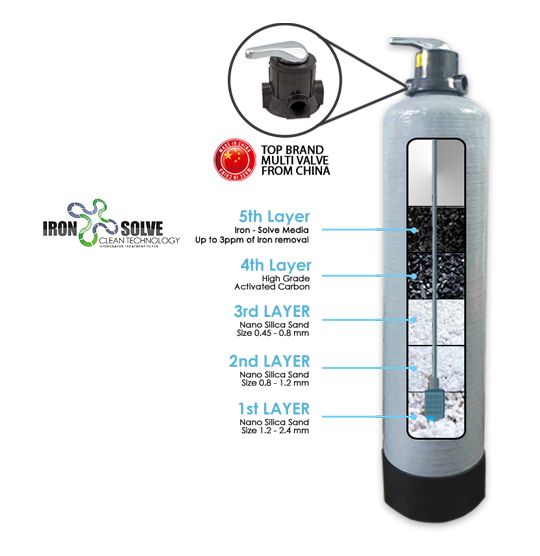

  • 5 Layers of Treatment Filtration
  • Remove suspended solids and reduce the turbidity of water
  • Adsorption and removal of water color residual chlorine colloid and iron ions, etc.
  • Convenient operation, long-term stability and easy management
  • Widely used in water treatment systems with excessive iron and manganese standards
  • 5 Years warranty for pressure tank
  • 1 Year warranty for MPV Valve

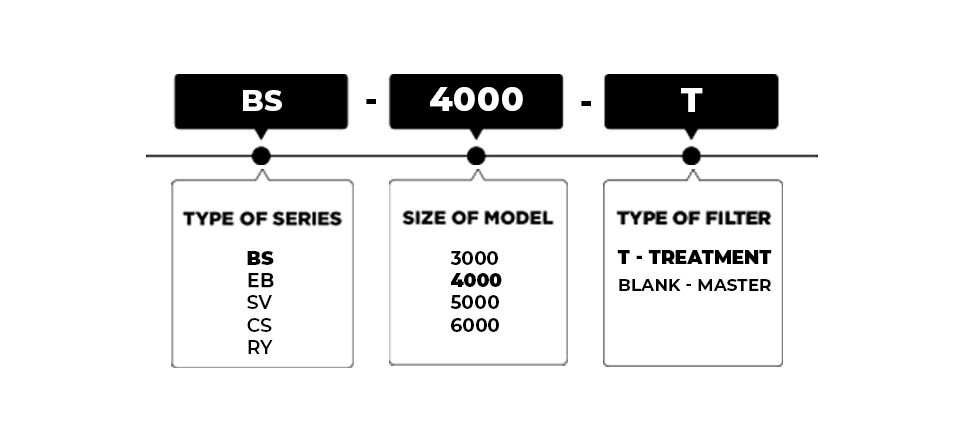

Model Definition

Multi Media with Multi Function provide clean & clear water

Mechanical Method

Nano Silica Sand

Size: 1.2 - 2.4 mm

Nano Silica Sand is an extremely effective
filter media able to hold back precipitates
containing impurities up to 10 micron (1.0mm)

Nano Silica Sand

Size: 0.8 - 1.2 mm

Nano Silica Sand is an extremely effective
filter media able to hold back precipitates
containing impurities up to 10 micron (1.0mm).
Filter sand size, angularity and hardness are
the important filter and characteristics to ensure proper filtrering

Nano Silica Sand

Size: 0.45 - 0.8 mm

Nano Silica Sand is an extremely effective
filter media able to hold back precipitates
containing impurities up to 10 micron (1.0mm)

Adsorption Method

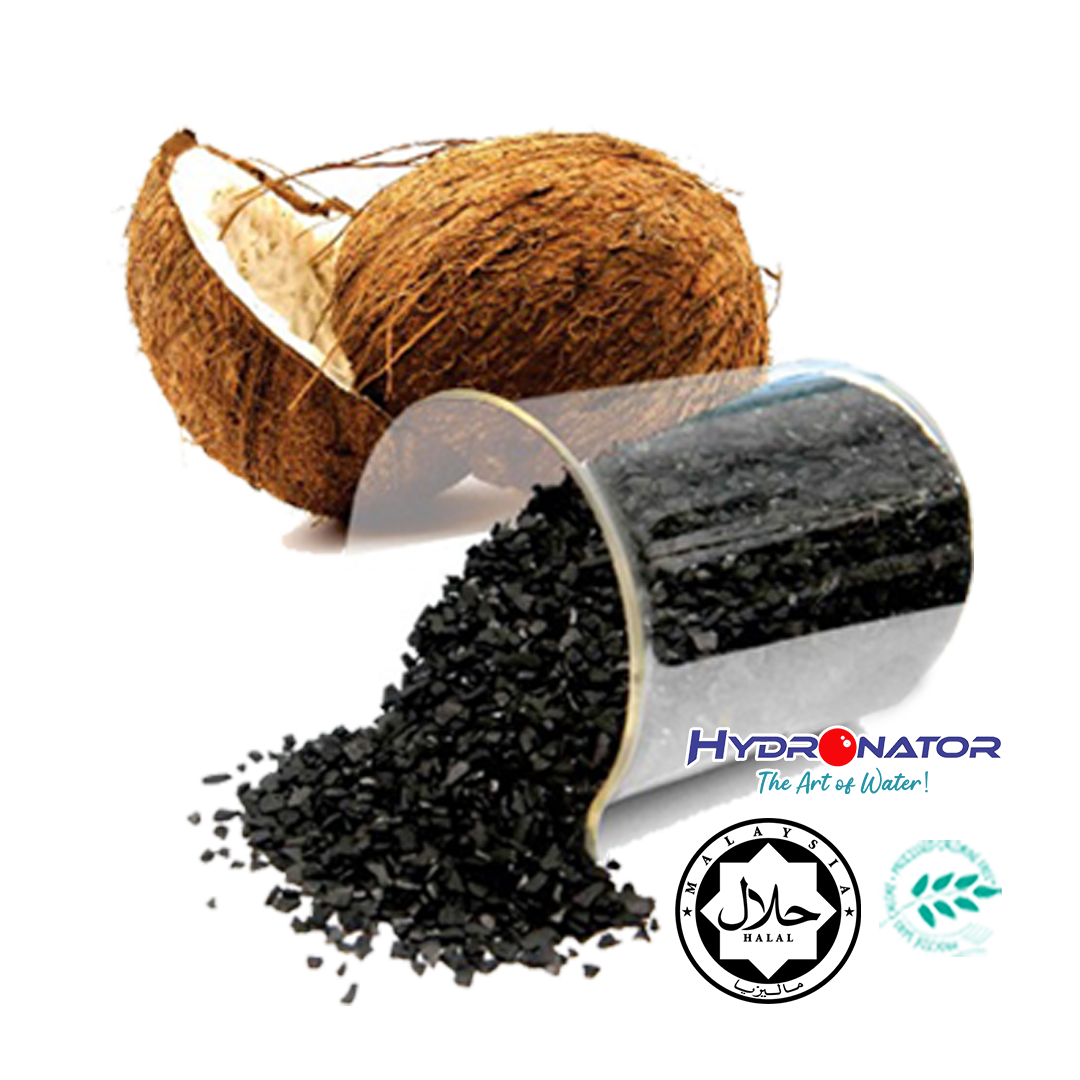

High Grade Activated Carbon

  • Removal of taste, odor, chlorine, ozone, organic contaminants and bacteria from process water
  • Protection for ion-exchange resins
  • Replacement of sand in rapid Gravity Sand Filters
  • Improvement of color, taste and odor of beverages

Iron Solve Media

  • Removal reddish - brown staining on bathroom & kitchen fixtures
  • Prevent stains in washing machines and laundry
  • Clothes are cleaner and whites are whiter
  • Prevents staining on dishes dishwasher
  • Cleaner water at every rap including showers
  • Low maintenance

Advantages of Composite Fiber Glass(GFG)

Multi-port Manual Control Valve

THE SPECIAL MPV CONTROL VALVE WITH BY-PASS FUNCTION

THIS MULTI-PORT CONTROL VALVE IS COME WITH 4 STEPS FUNCTION WHICH ABLE TO TURN FOR BY PASS FUNCTION, THE CONVENSIONAL MPV VALVE IS 3 STEPS AND WITHOUT BY PASS FUNCTION, ITS SIMPLE DESIGN MAKES IT EASIER TO USE.

Specifications

Model MPV Valve Valve Size
(mm)
Tank Volume
(L)
Tank CoatingSize H x D
(inch)
Filter MediaEst. Service Life
BS3000TStandard 3 Steps2548No44 x 105 Layer Treatment1 - 2 Years
BS4000TStandard 3 Steps2562No54 x 105 Layer Treatment2 - 3 Years
BS5000TStandard 3 Steps2585No52 x 125 Layer Treatment3 - 4 Years
BS6000TStandard 3 Steps25106No54 x 135 Layer Treatment4 - 5 Years

* Standard of Filtration Flow rate depend on water source quality
* Operating water pressure: 0.8 ~ 3.8 bar

Treatment  Filtration Rate

ModelFiltration Flow Rate
(Heavy)
Filtration Flow Rate
(Standard)
Filtration Flow Rate
(Light)
Backwash Flow Rate
18 m³ / hr / m²24 m³ / hr / m²30 m³ / hr / m²40 m³ / hr / m²
BS3000T12 lpm
0.72 m³ / hr
16 lpm
0.96 m³ / hr
20 lpm
1.20 m³ / hr
26 lpm
1.58 m³ / hr
BS4000T15 lpm
0.90 m³ / hr
20 lpm
1.20 m³ / hr
25 lpm
1.50 m³ / hr
33 lpm
2.00 m³ / hr
BS5000T21 lpm
1.26 m³ / hr
28 lpm
1.68 m³ / hr
35 lpm
2.10 m³ / hr
47 lpm
2.80 m³ / hr
BS6000T24 lpm
1.44 m³ / hr
32 lpm
1.92 m³ / hr
40 lpm
2.40 m³ / hr
53 lpm
3.20 m³ / hr

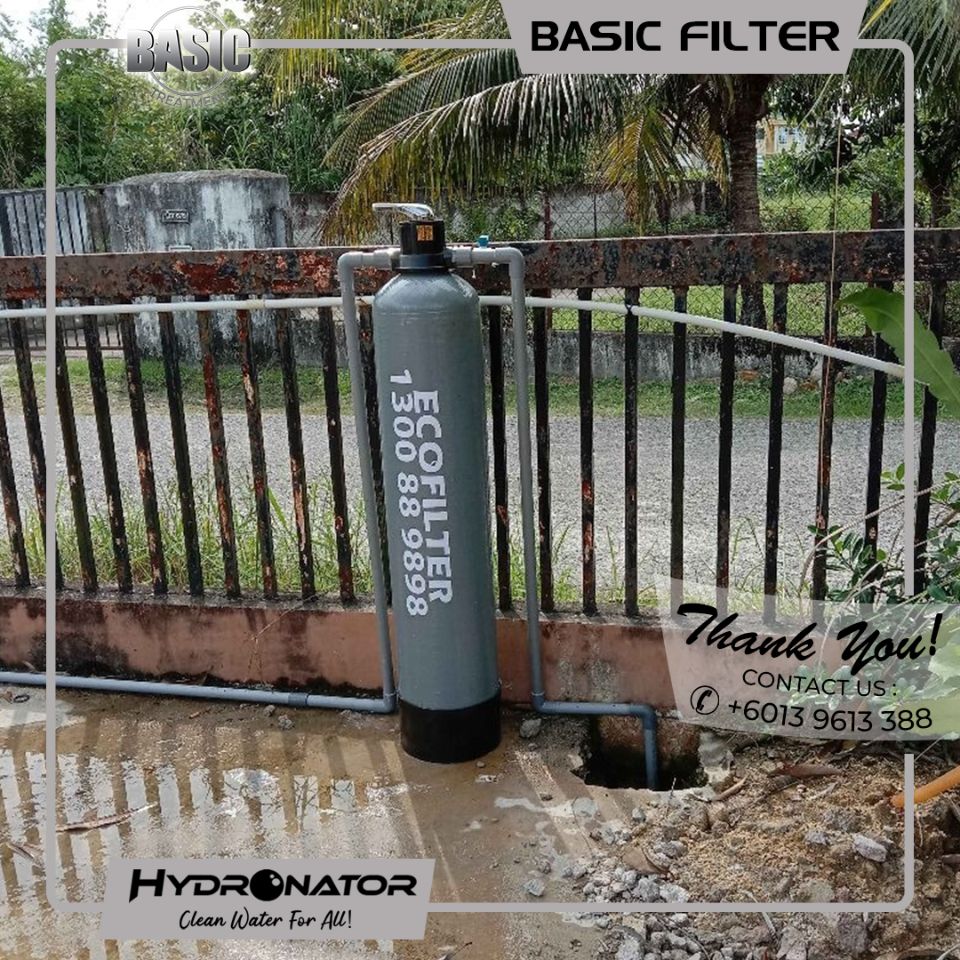

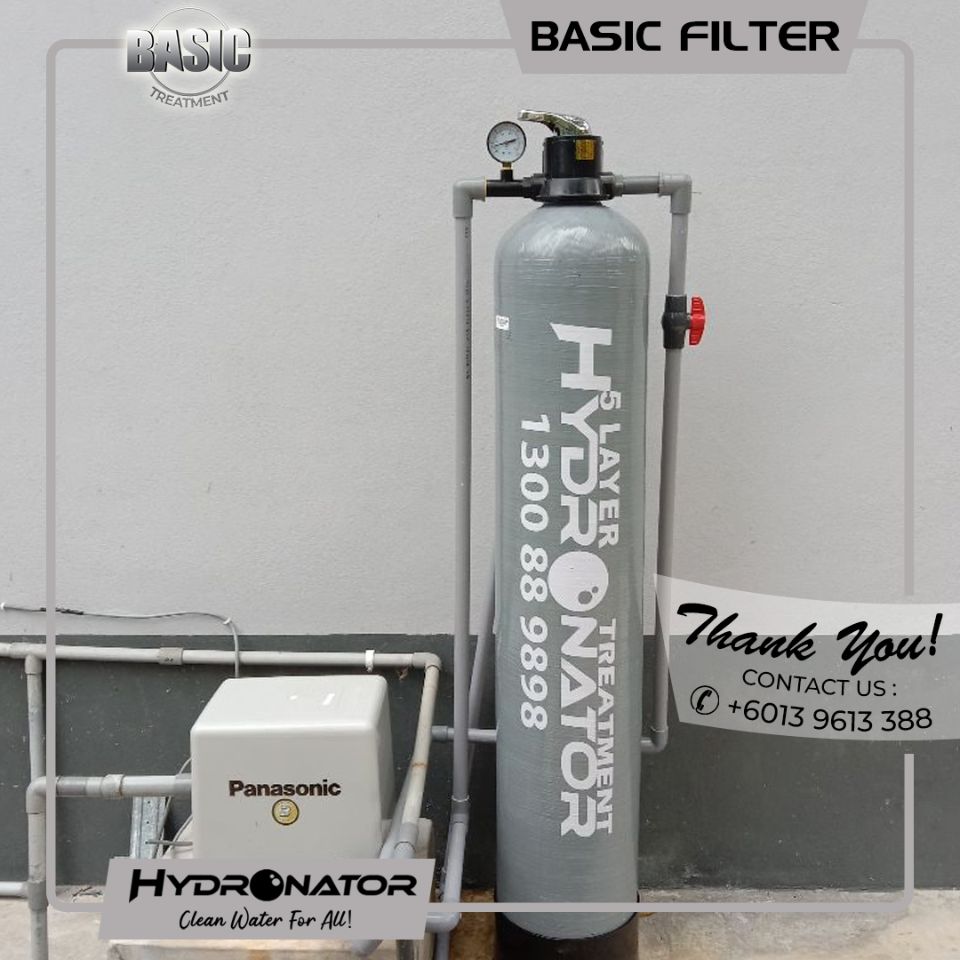

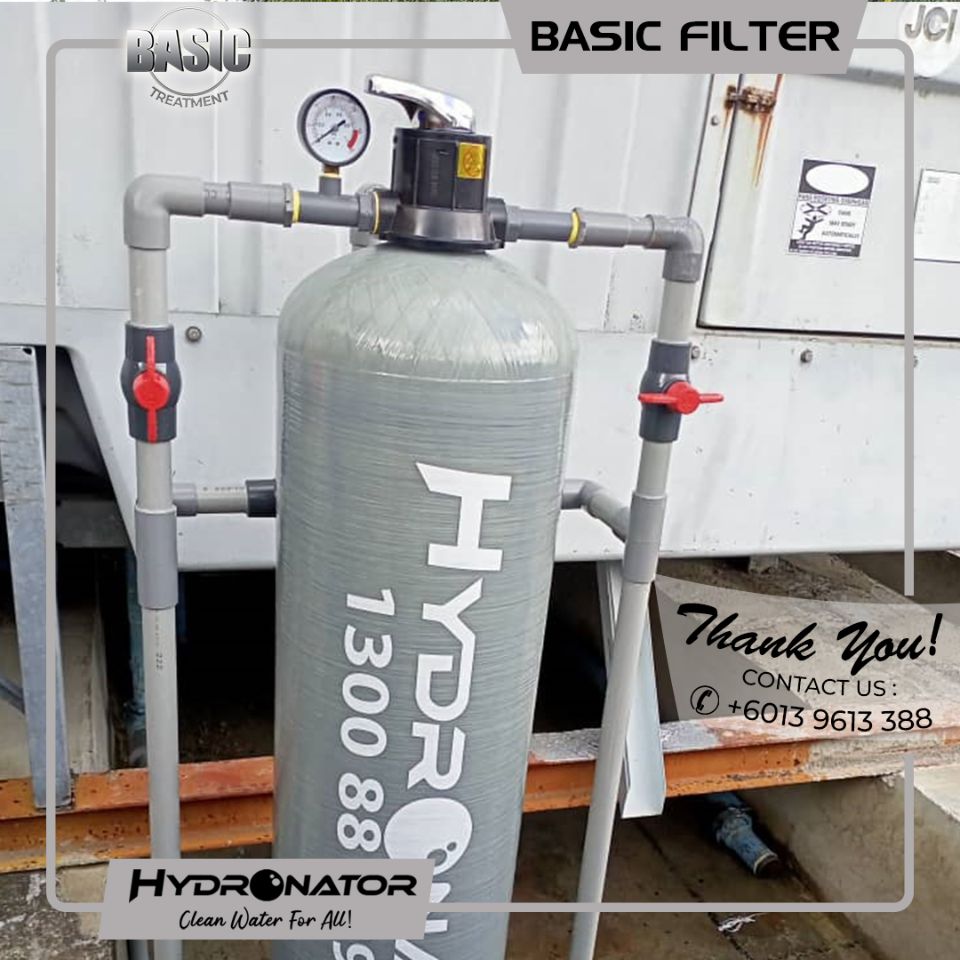

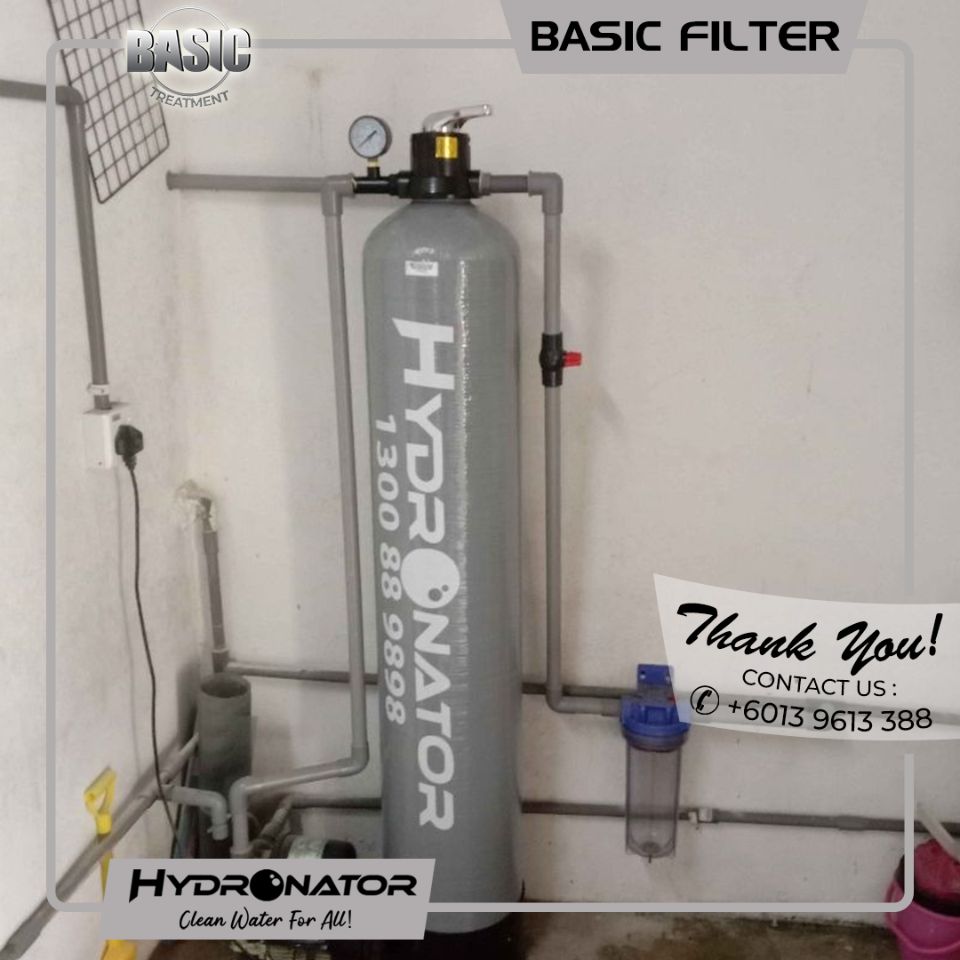

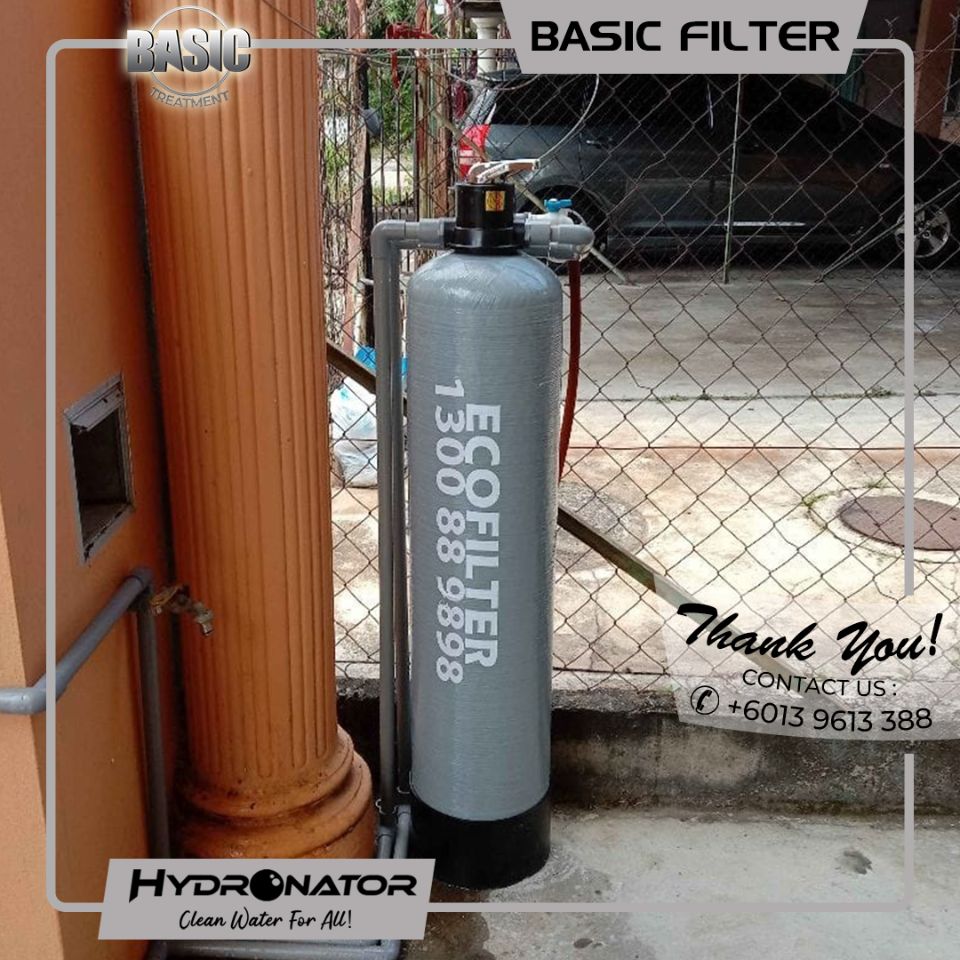

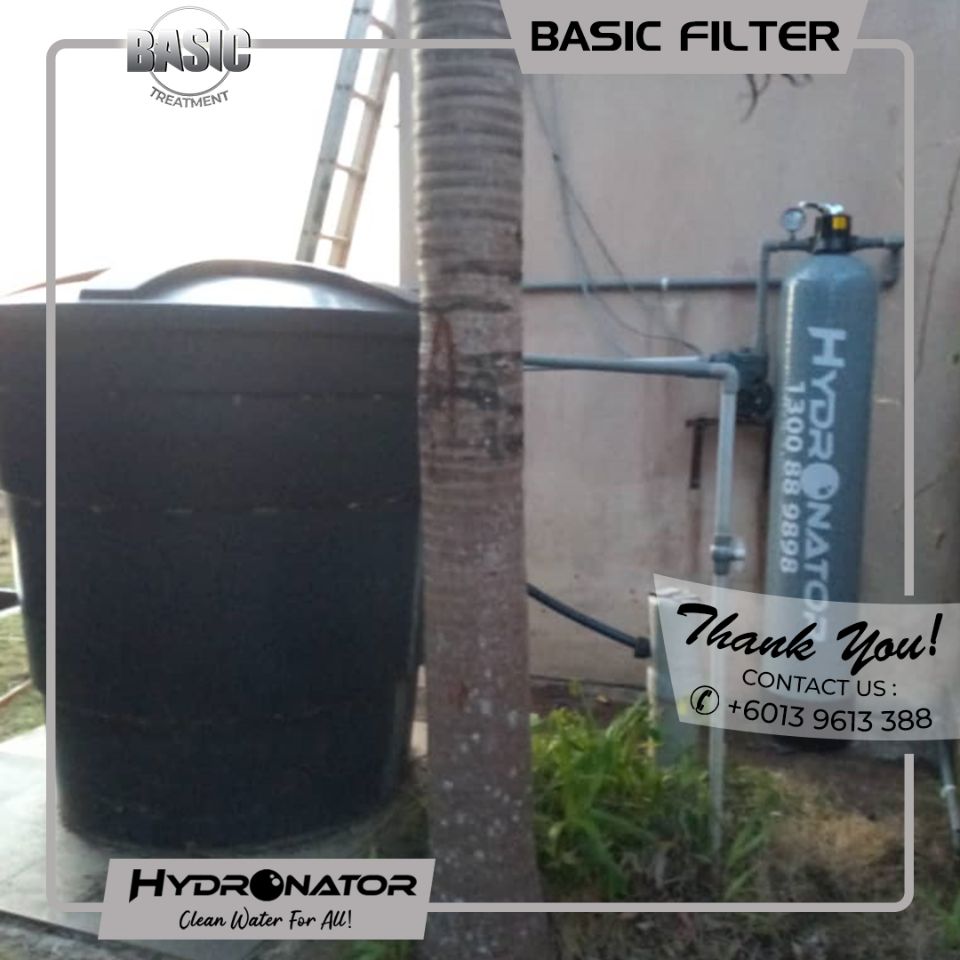

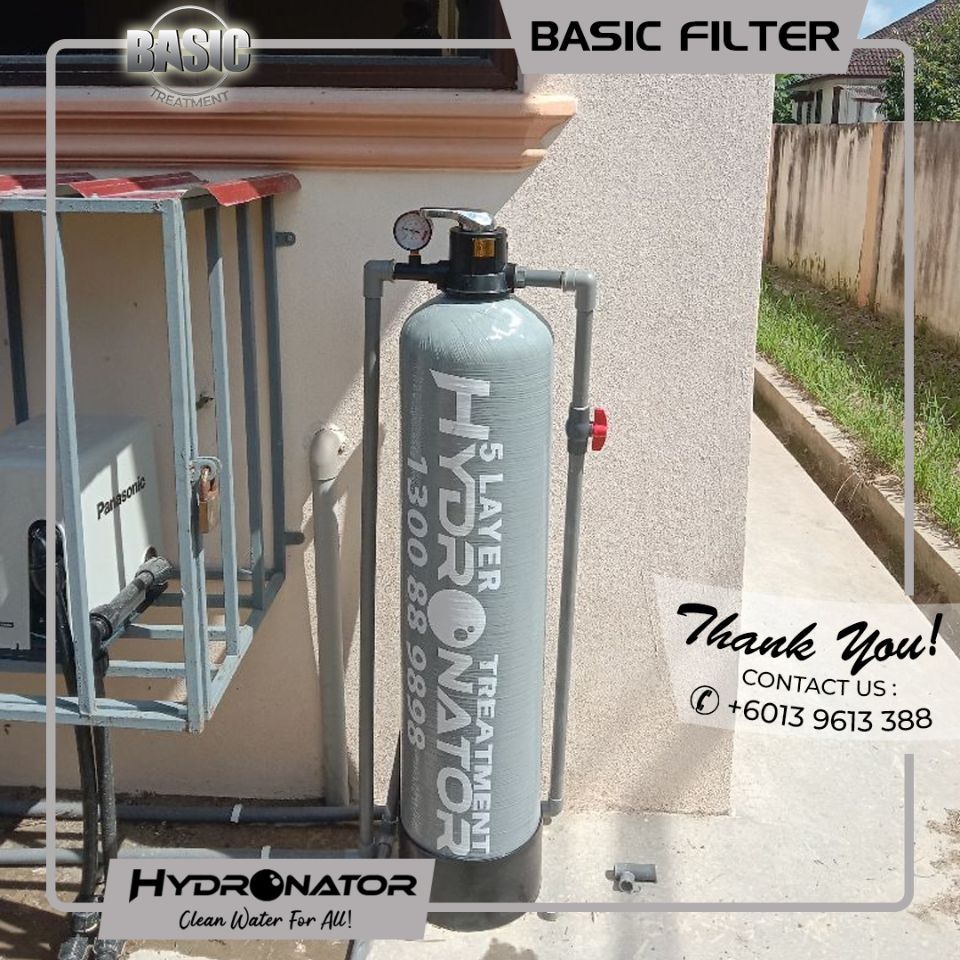

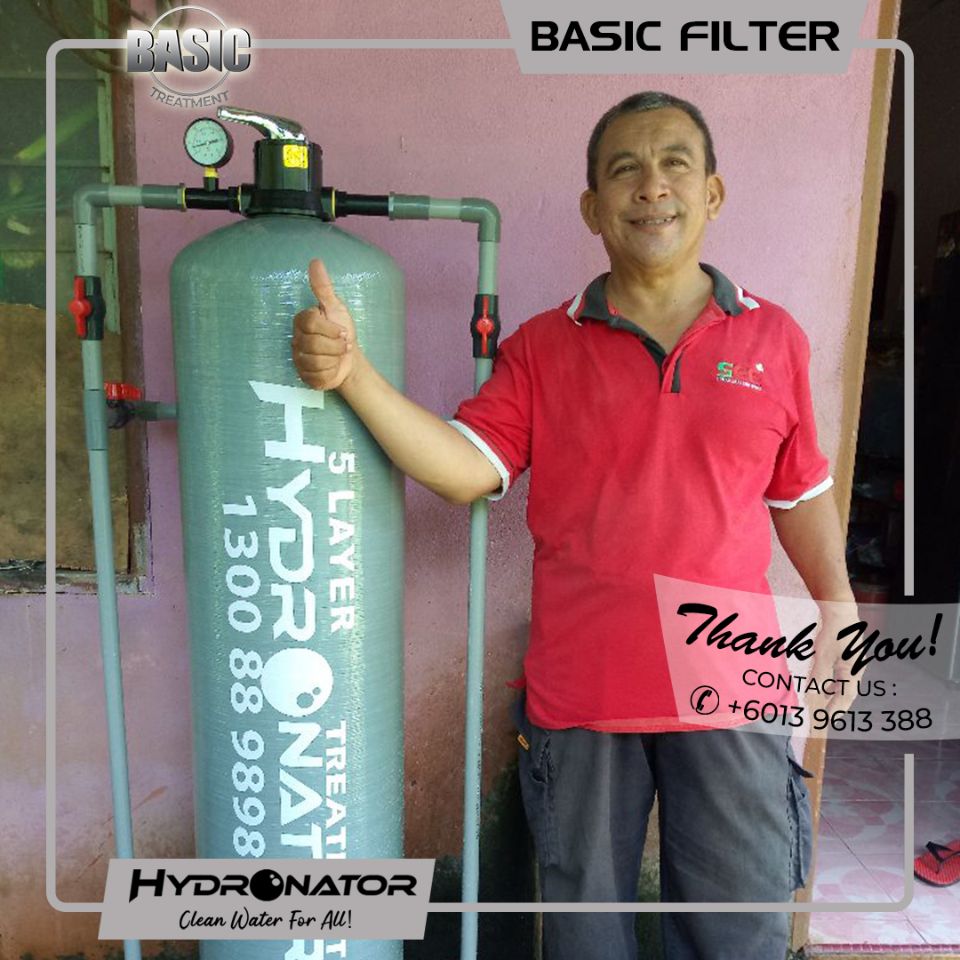

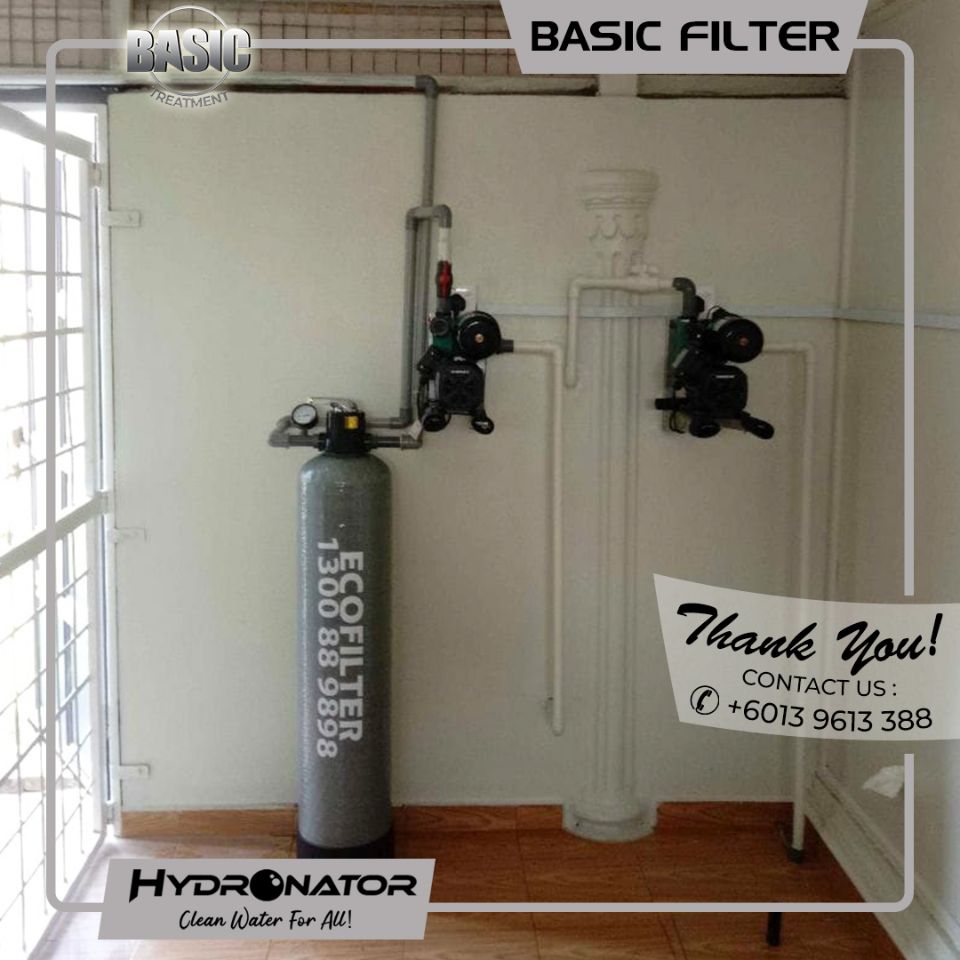

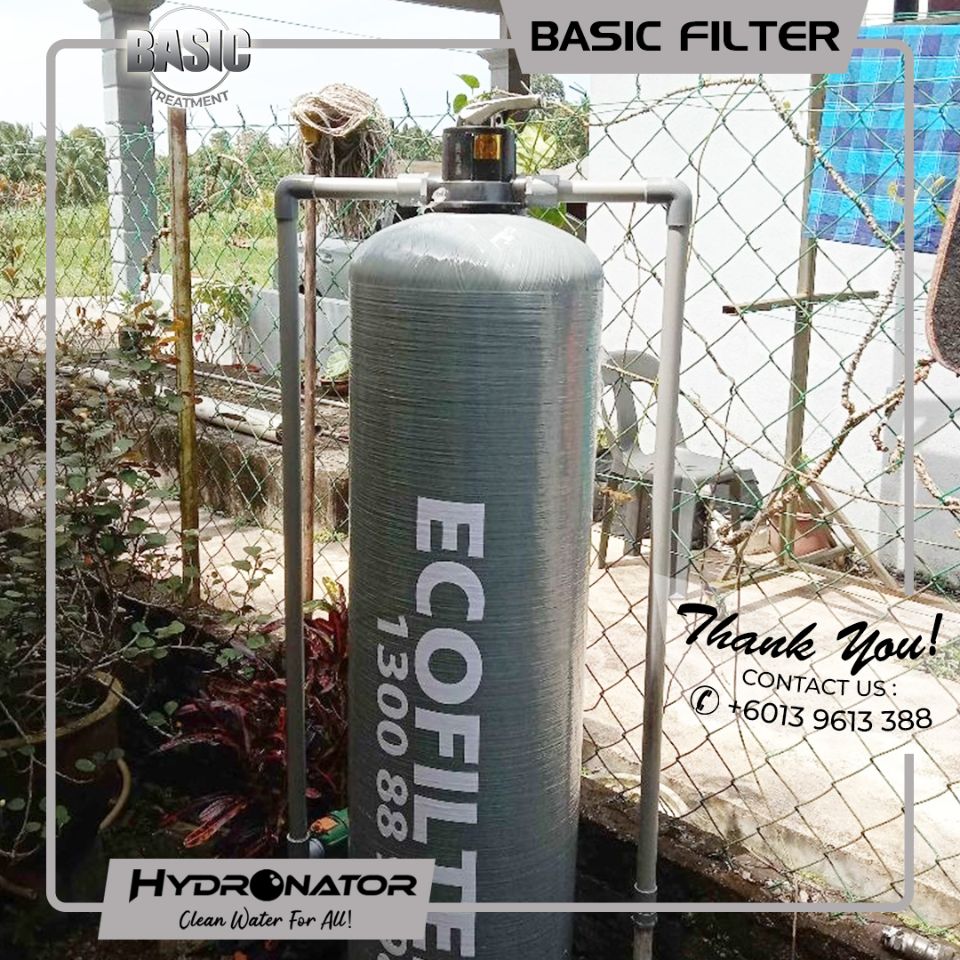

Sample Installation

Sample Installation
