By using Treatment Filter,
you're able to get the clean water
Silver Treatment
Features
- 7 Layers of Treatment Filtration
- Remove suspended sollds and reduce the turbidity of water
- Adsorption and removal of water color residual chlorine colloid and iron ions, etc
- Select the size according to the amount of filtered water
- Convenient operation, long-term stability and easy management
- Widely used in water treatment systems with excessive iron and manganese standards
- 12 Years warranty for pressure tank
- 1 Year warranty for MPV Valve

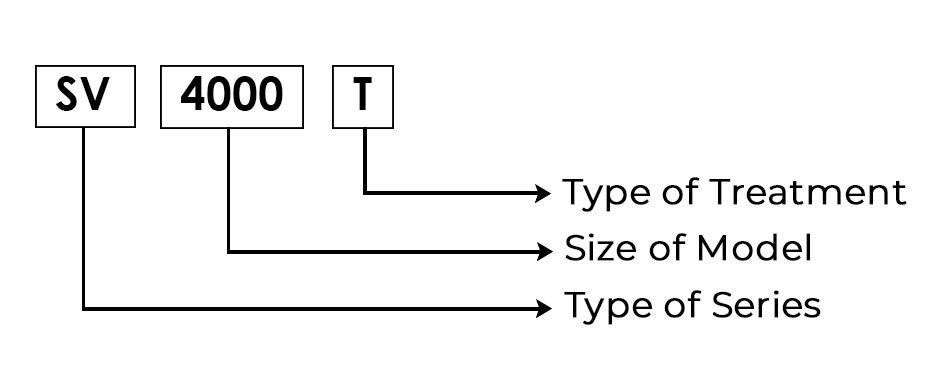

Model Definition
Multi Media with Multi Function provide clean & clear water
Functional Method
Anti Bacterial Ball
- Excellent anti-bacteria function
- Remove bad smell of water
- Prevent microbe's propagation
- Double function
Adsorption Method
High Grade Activated Carbon
- Removal of taste, odor, chlorine, ozone, organic contaminants and bacteria from process water
- Protection for ion-exchange resins
- Replacement of sand in rapid Gravity Sand Filters
- Improvement of colour, taste and odor of beverages
Filter Coal Anthracite
- Easy Backwashing & Maintenance
- Unique density allows Anthracite to be combined with other filtration media in multi-media filters
- Higher service flows and longer filter runs than equivalent filters
- High mechanical strength
Super Solve Media
- Removal reddish - brown staining on bathroom & kitchen fixtures
- Prevent stains in washing machines and laundry
- Clothes are cleaner and whites are whiter
- Prevents staining on dishes dishwasher
- Cleaner water at every rap including showers
- Low maintenance
Mechanical Method
Nano Silica Sand
Size: 1.2 - 2.4 mm
Nano Silica Sand is an extremely effective
filter media able to hold back precipitates
containing impurities up to 10 micron (1.0mm)
Nano Silica Sand
Size: 0.8 - 1.2 mm
Nano Silica Sand is an extremely effective
filter media able to hold back precipitates
containing impurities up to 10 micron (1.0mm).
Filter sand size, angularity and hardness are
the important filter and characteristics to ensure proper filtrering
Nano Silica Sand
Size: 0.45 - 0.8 mm
Nano Silica Sand is an extremely effective
filter media able to hold back precipitates
containing impurities up to 10 micron (1.0mm)
Multi-port Manual Control Valve
THE SPECIAL MPV CONTROL VALVE WITH BY-PASS FUNCTION
THIS MULTI-PORT CONTROL VALVE IS COME WITH 4 STEPS FUNCTION WHICH ABLE TO TURN FOR BY PASS FUNCTION, THE CONVENSIONAL MPV VALVE IS 3 STEPS AND WITHOUT BY PASS FUNCTION, ITS SIMPLE DESIGN MAKES IT EASIER TO USE.
Advantages of Composite Fiber Glass(GFG)
Specifications
|
|
|
|
| |||||
|---|---|---|---|---|---|---|---|---|
|
|
Model | MPV Valve | Valve Size (mm) |
Tank Volume (L) | Tank Coating | Size H x D (inch) | Filter Media | Est. Service Life |
| SV4000T | 4 Steps with By-pass | 25 | 62 | Yes | 54 x 10 | 7 Layer Treatment | 2 - 3 Years | |
| SV5000T | 4 Steps with By-pass | 25 | 85 | Yes | 52 x 12 | 7 Layer Treatment | 3 - 4 Years | |
| SV6000T | 4 Steps with By-pass | 25 | 106 | Yes | 54 x 13 | 7 Layer Treatment | 4 - 5 Years |
Treatment Filtration Rate
| Model | Filtration Flow Rate
(Heavy) | Filtration Flow Rate
(Standard) | Filtration Flow Rate
(Light) | Backwash Flow Rate | |
| 18 m³ / hr / m² | 24 m³ / hr / m² | 30 m³ / hr / m² | 40 m³ / hr / m² | ||
| SV4000T | 15 lmp
0.90 m³ / hr | 20 lmp
1.20 m³ / hr | 25 lmp
1.50 m³ / hr | 33 lmp
2.00 m³ / hr | |
| SV5000T | 21 lmp
1.26 m³ / hr | 28 lmp
1.68 m³ / hr | 35 lmp
2.10 m³ / hr | 47 lmp
2.80 m³ / hr | |
| SV6000T | 24 lmp 1.44 m³ / hr | 32 lmp
1.92 m³ / hr | 40 lmp
2.40 m³ / hr | 53 lmp
3.20 m³ / hr |
International Association Certification

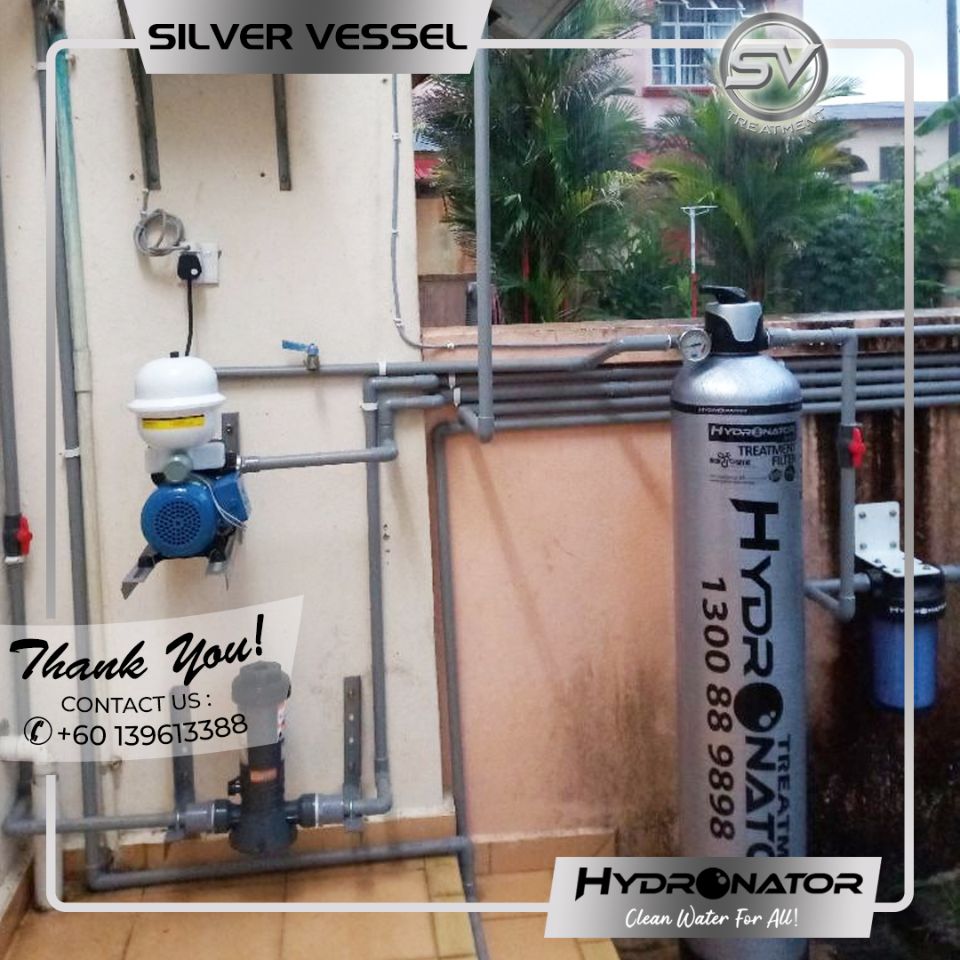

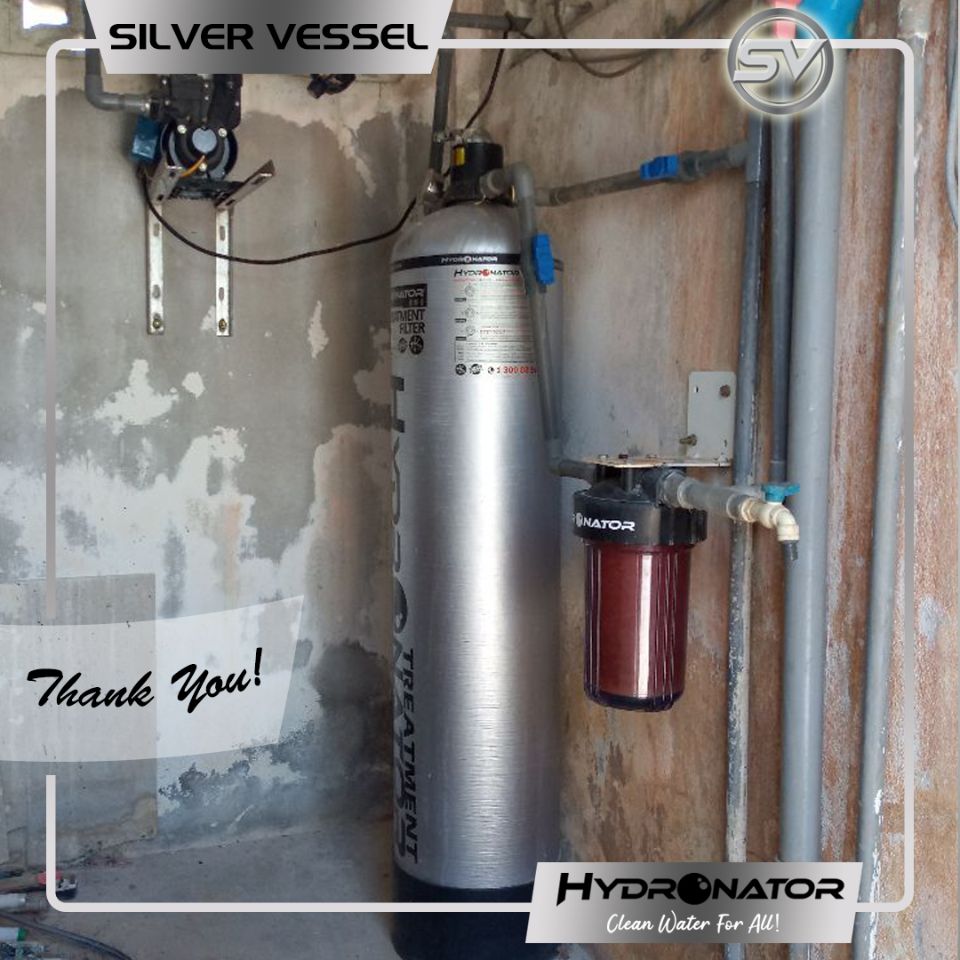

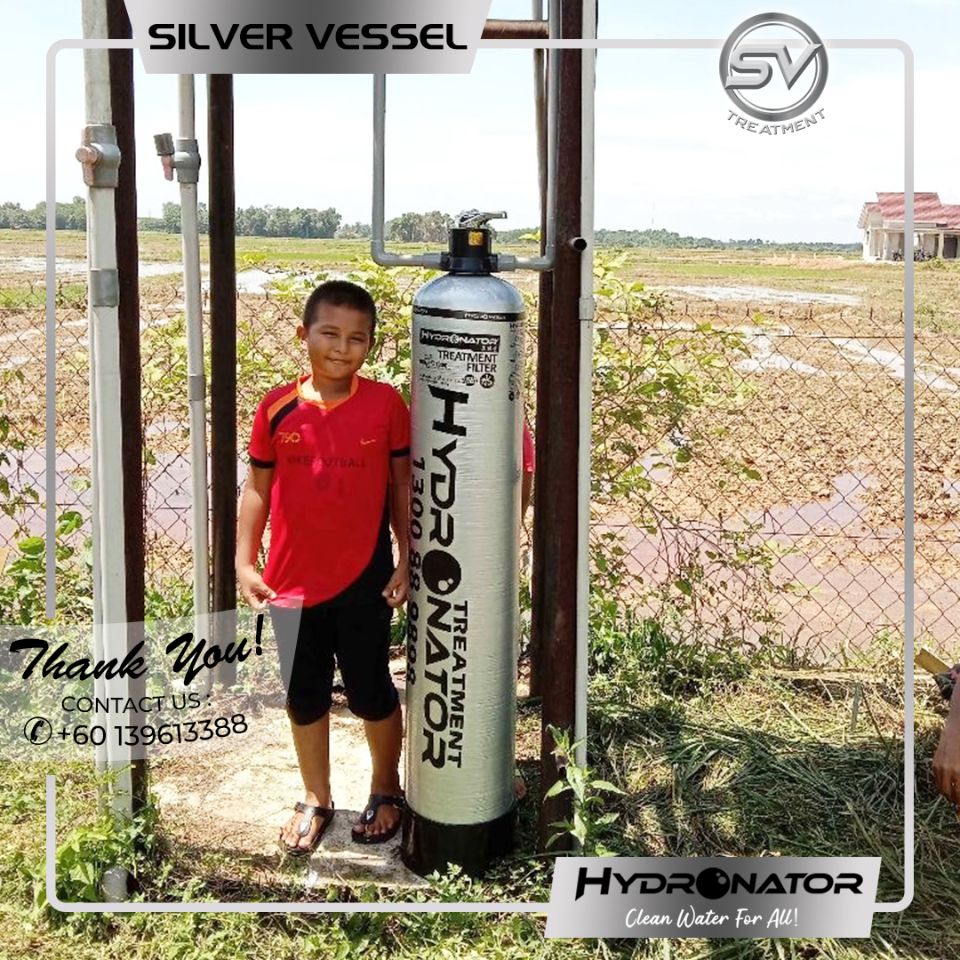

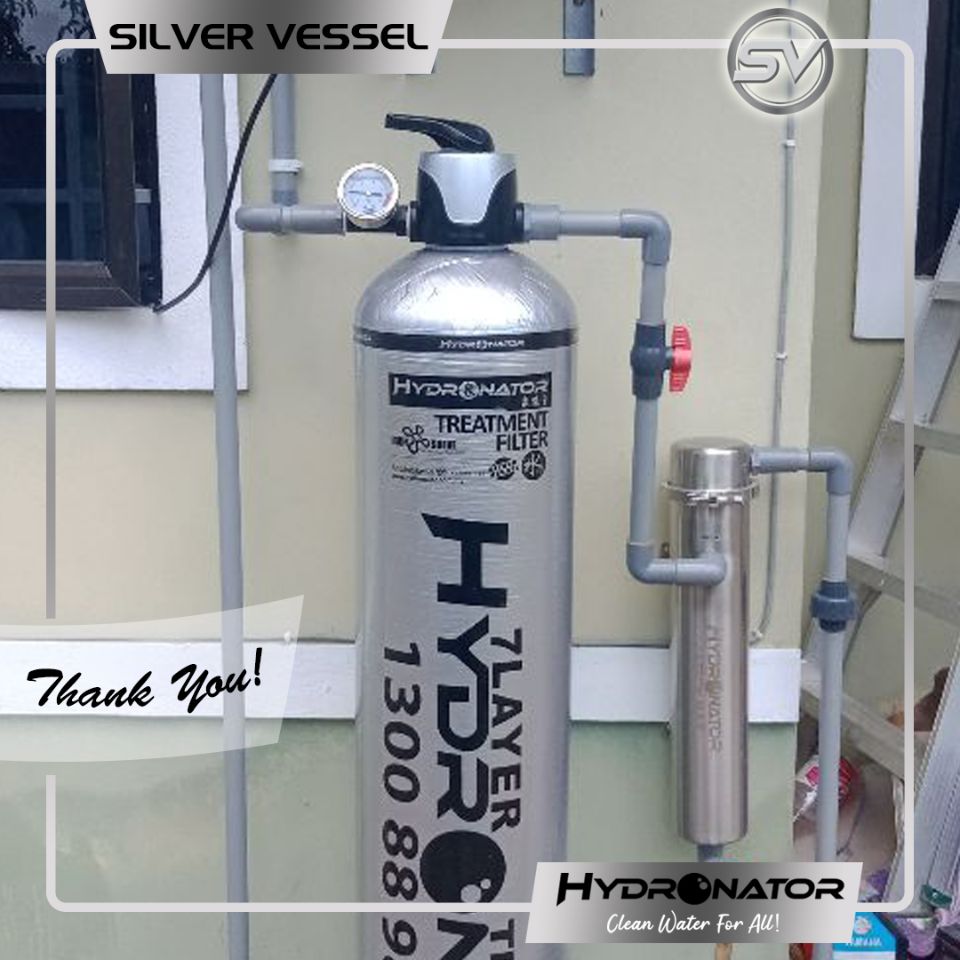

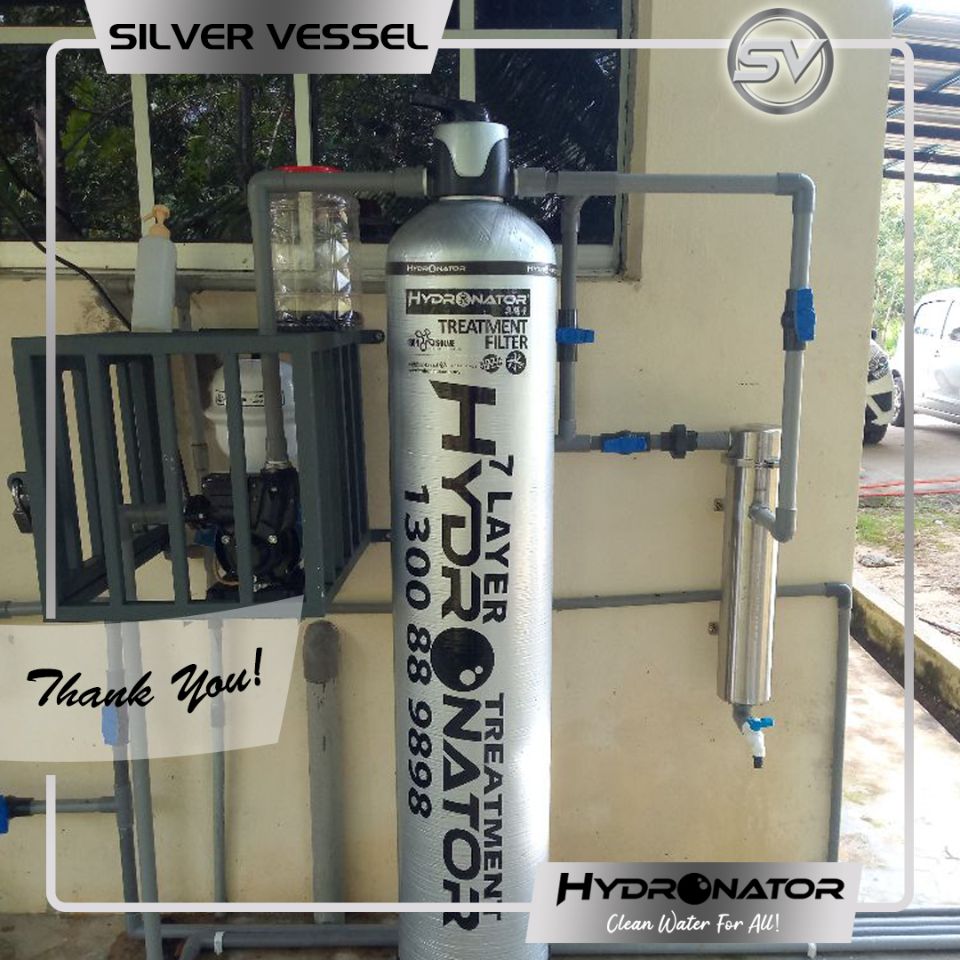

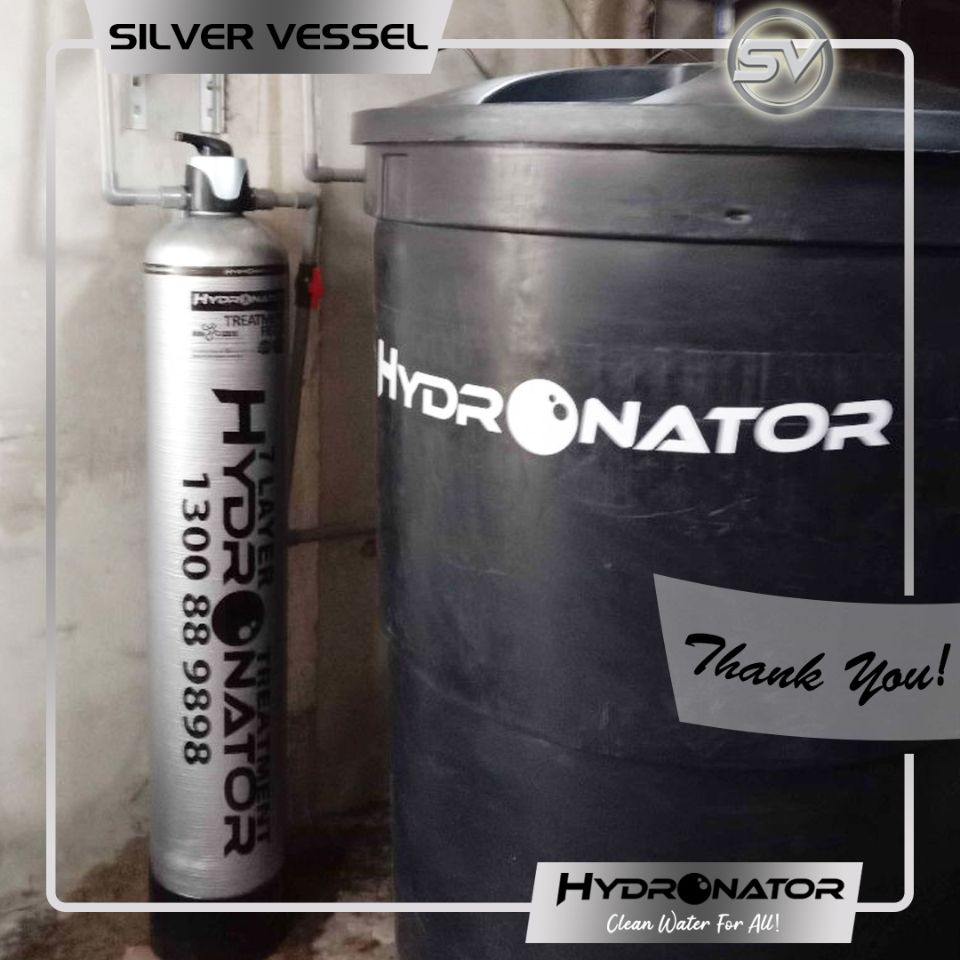

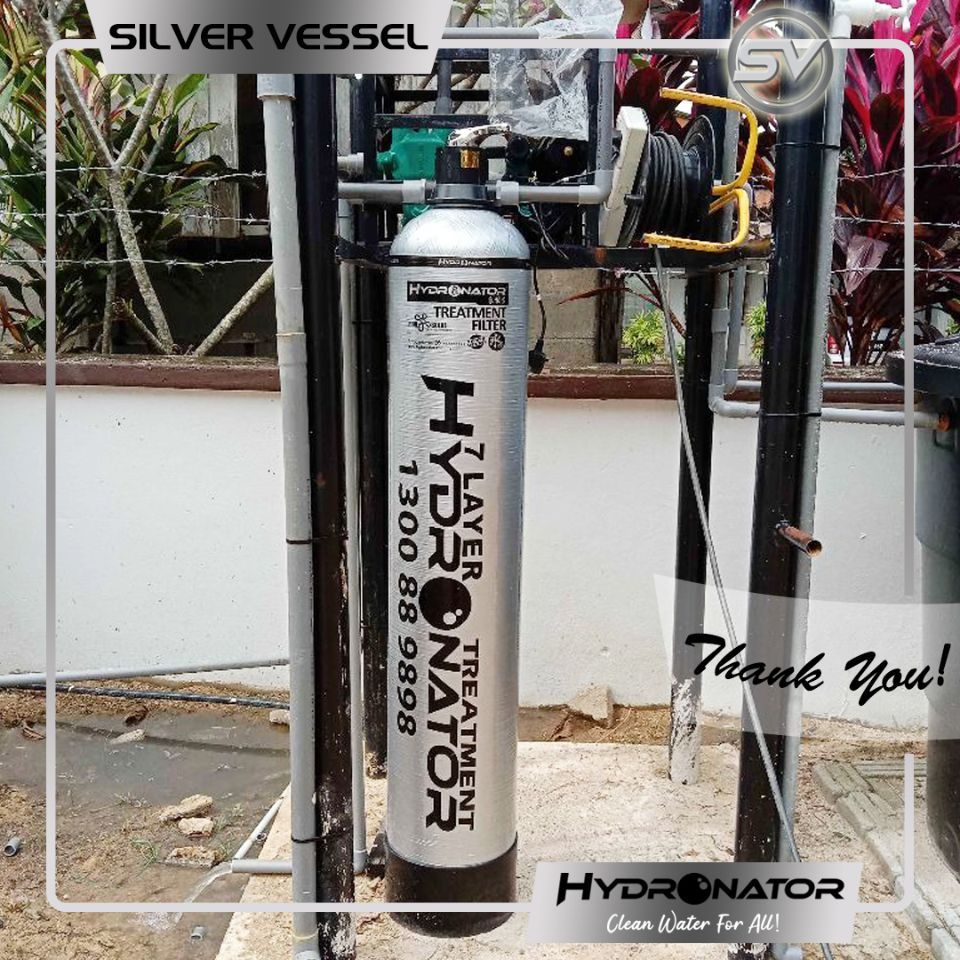

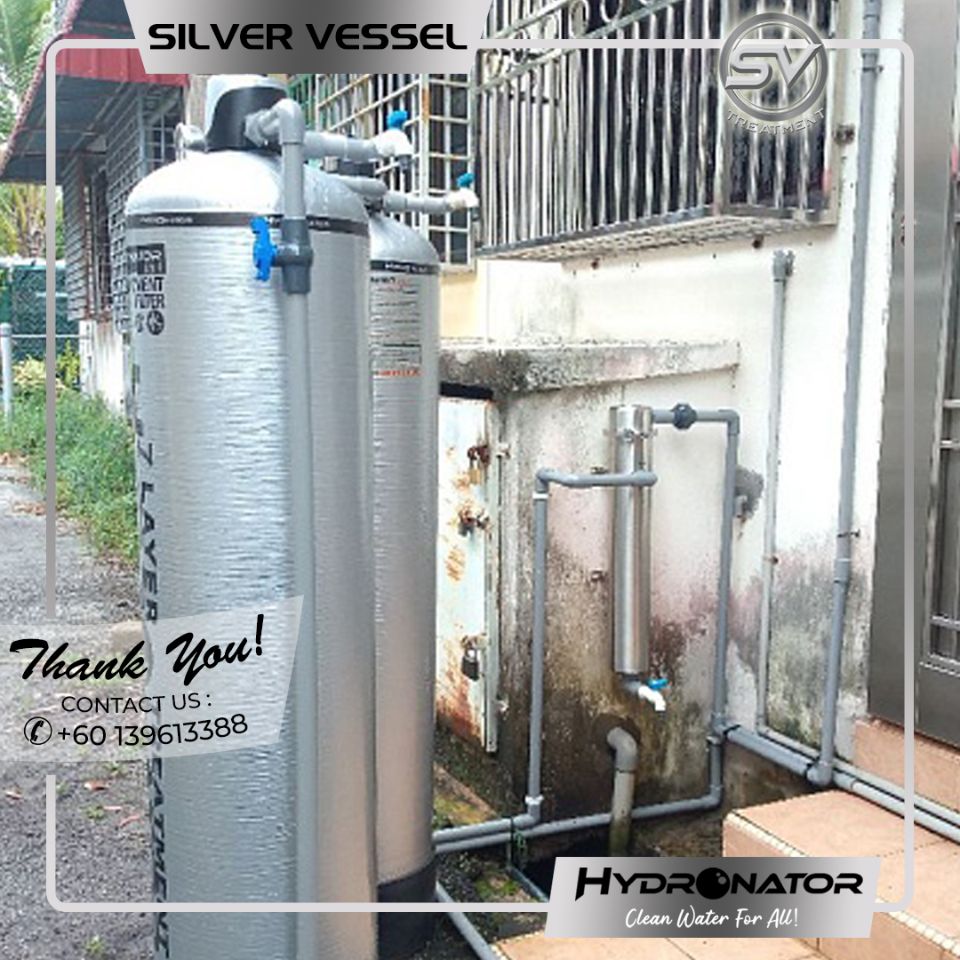

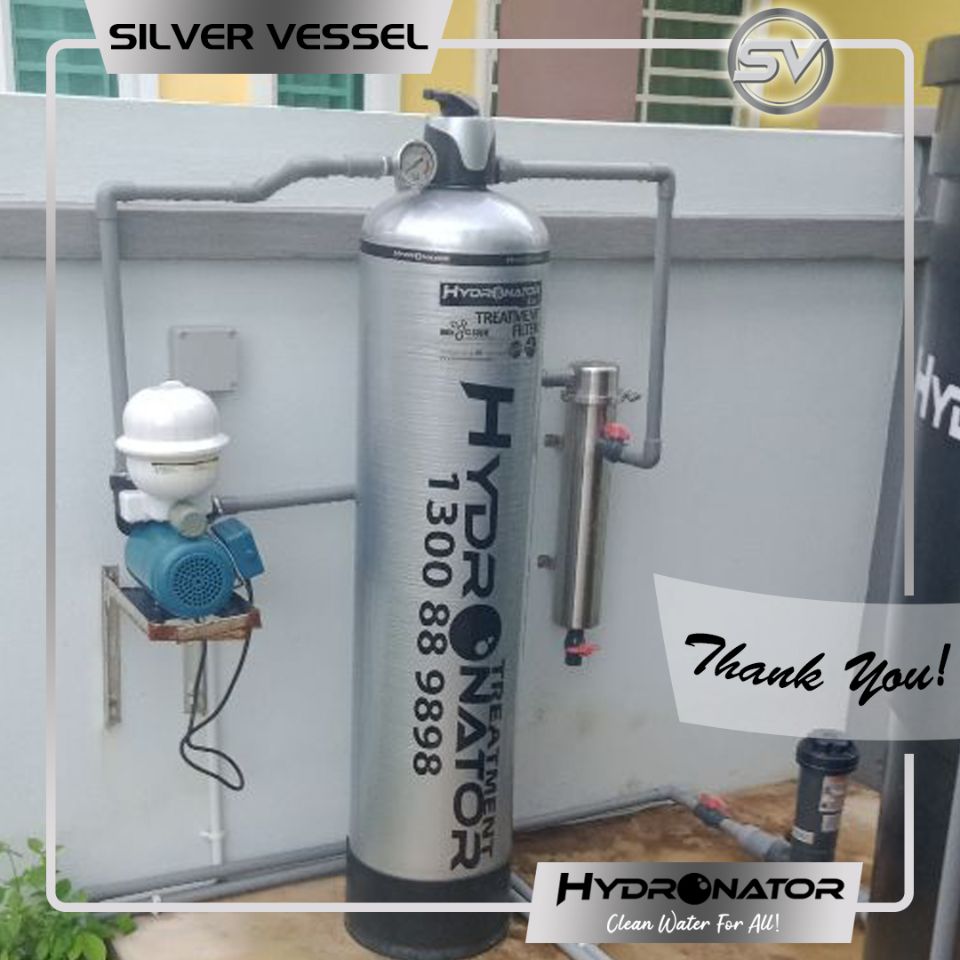

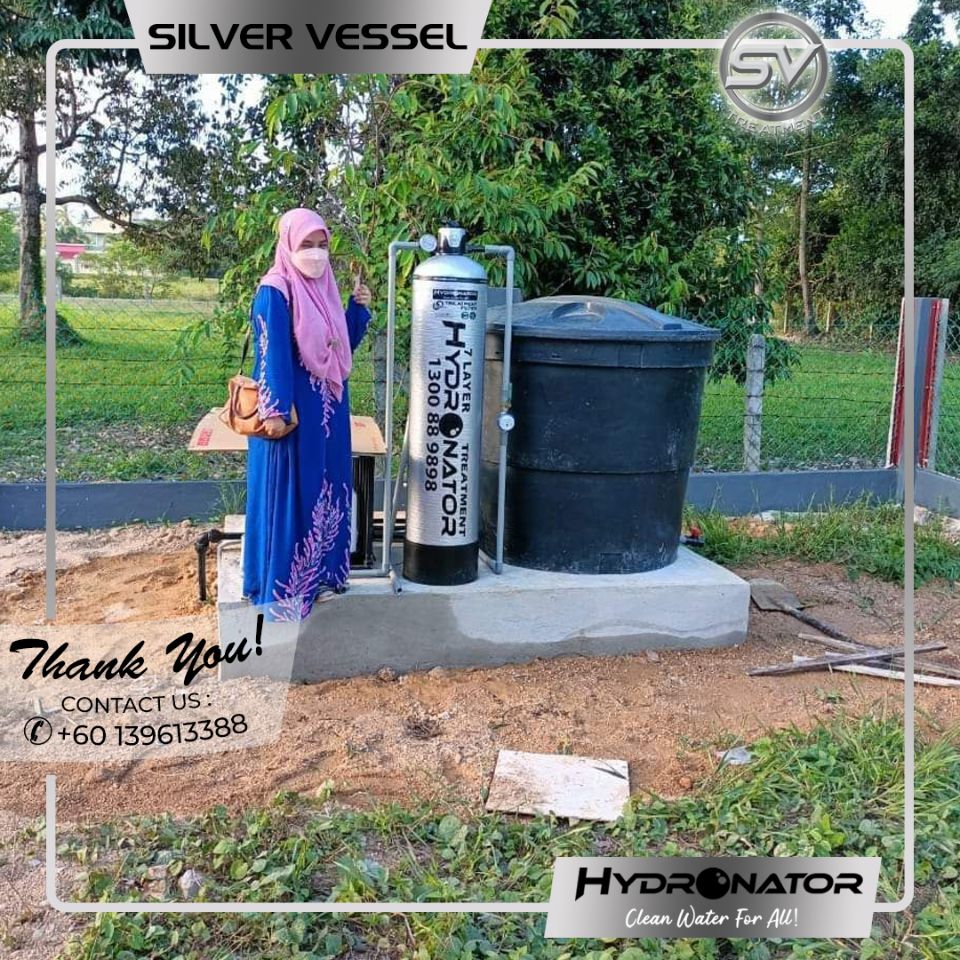

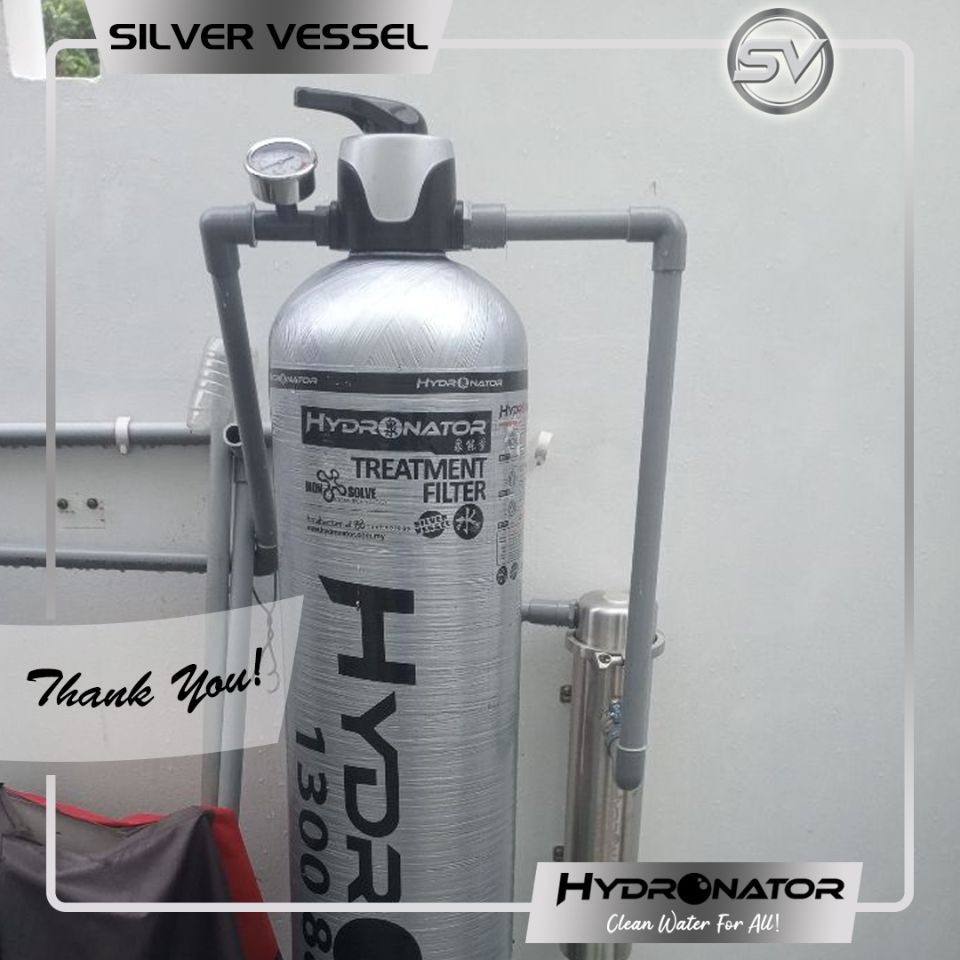

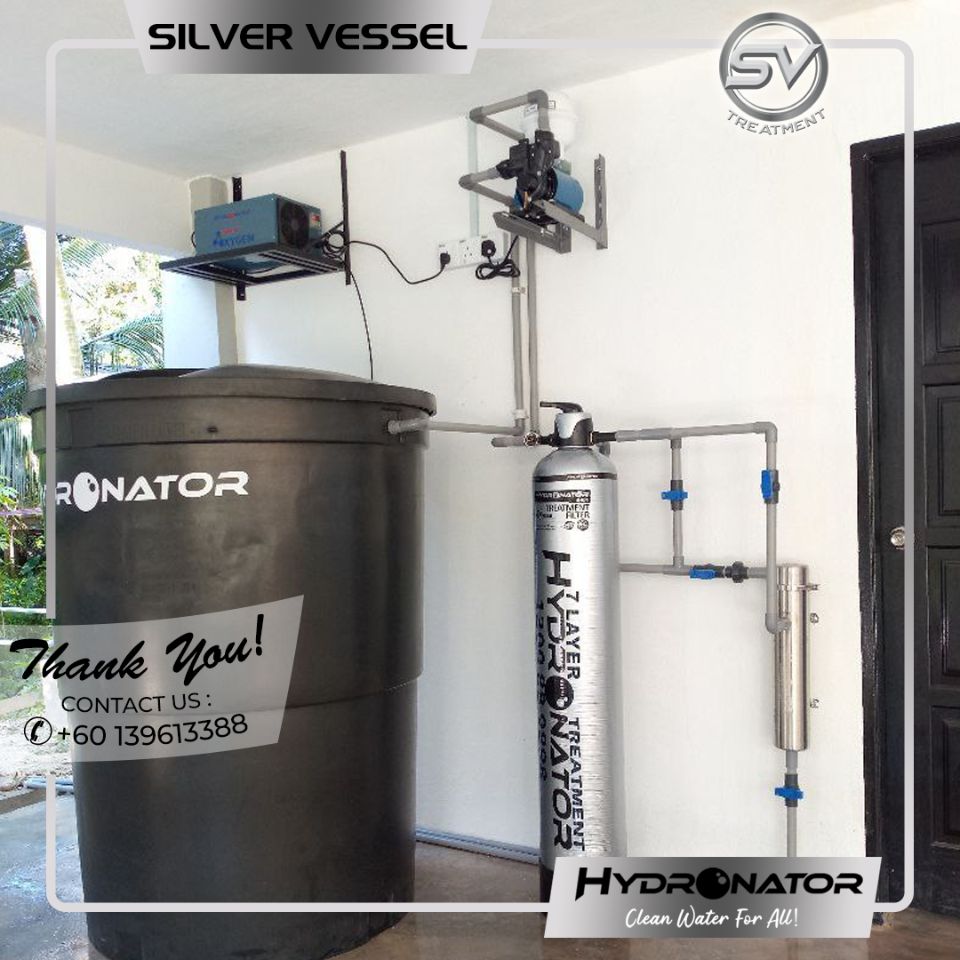

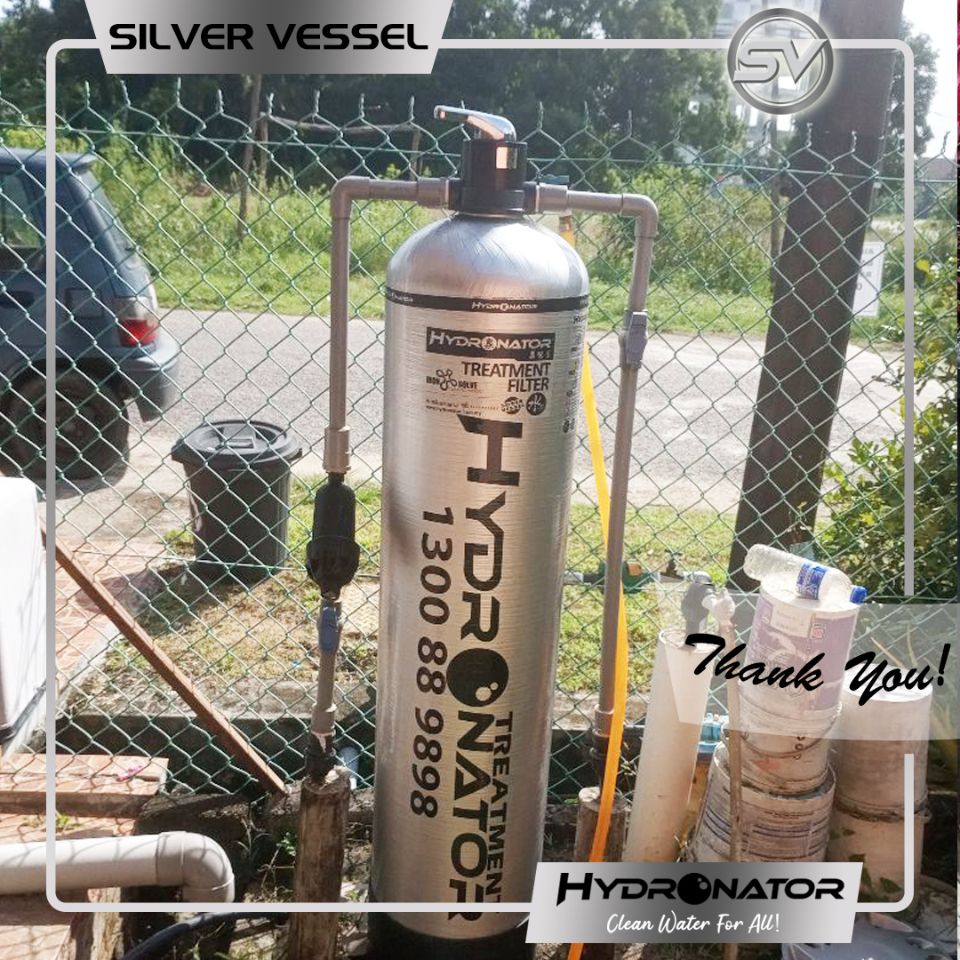

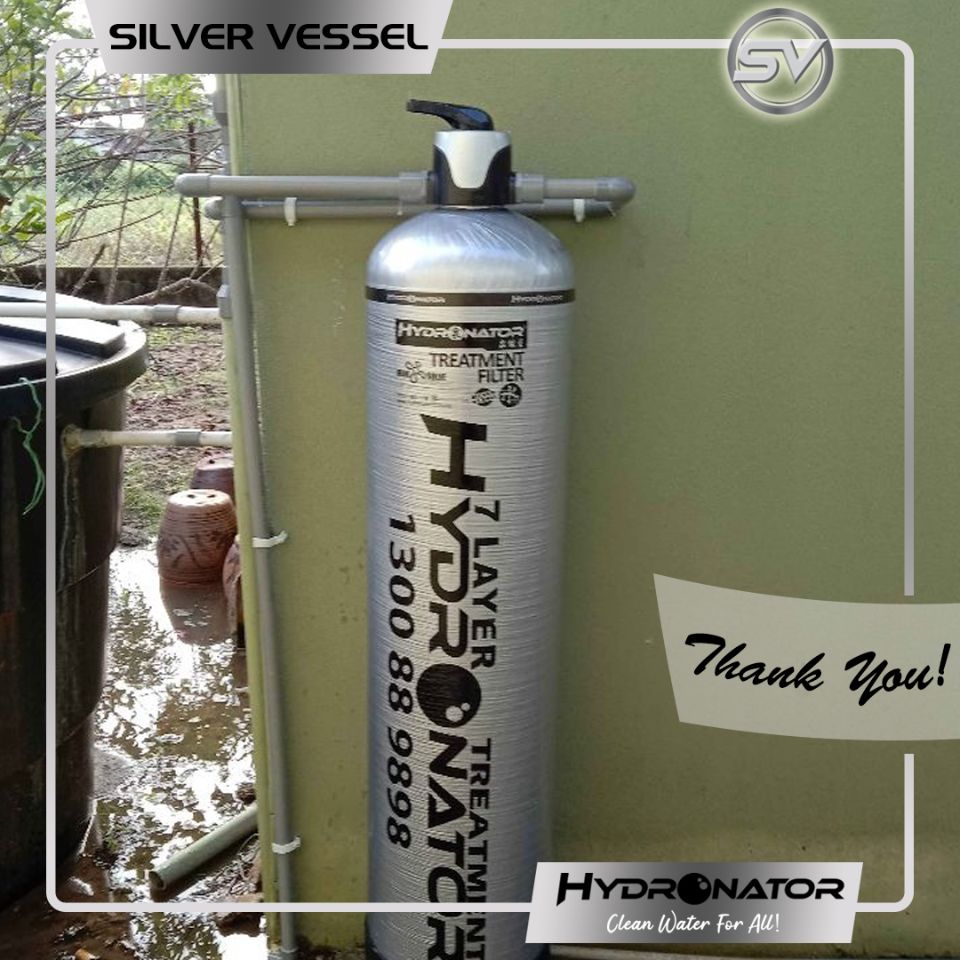

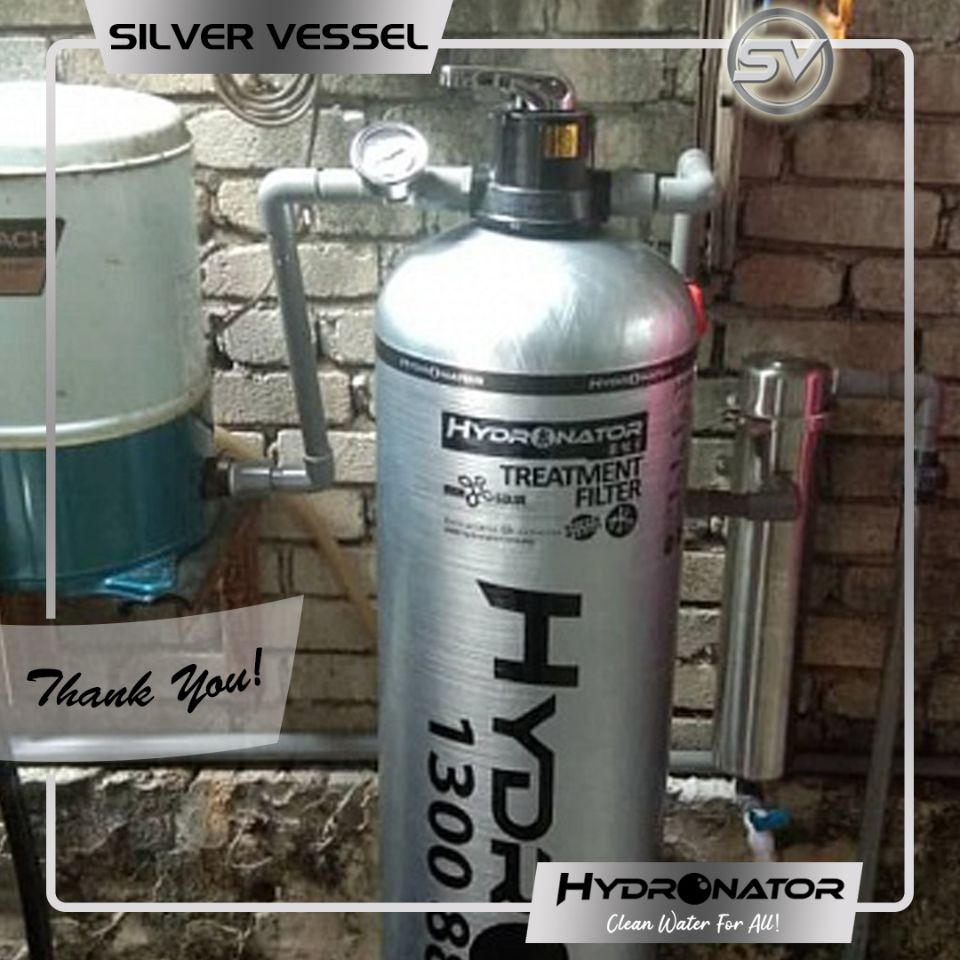

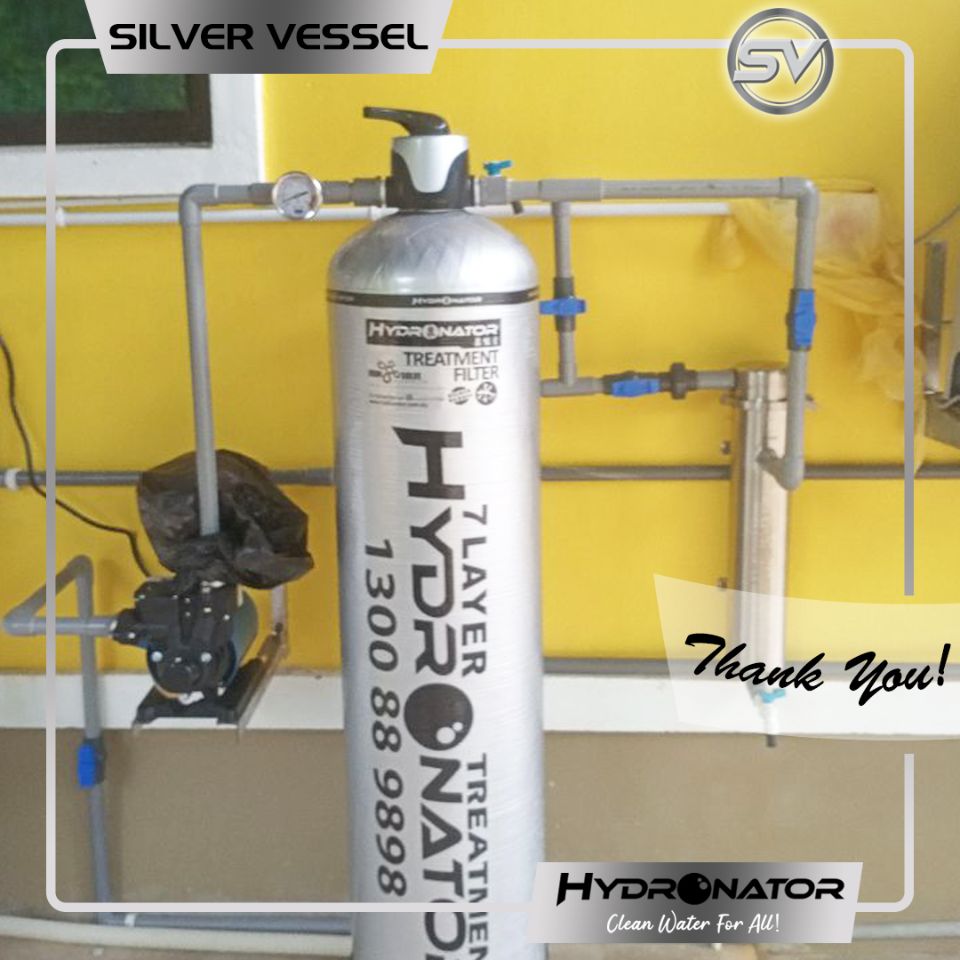

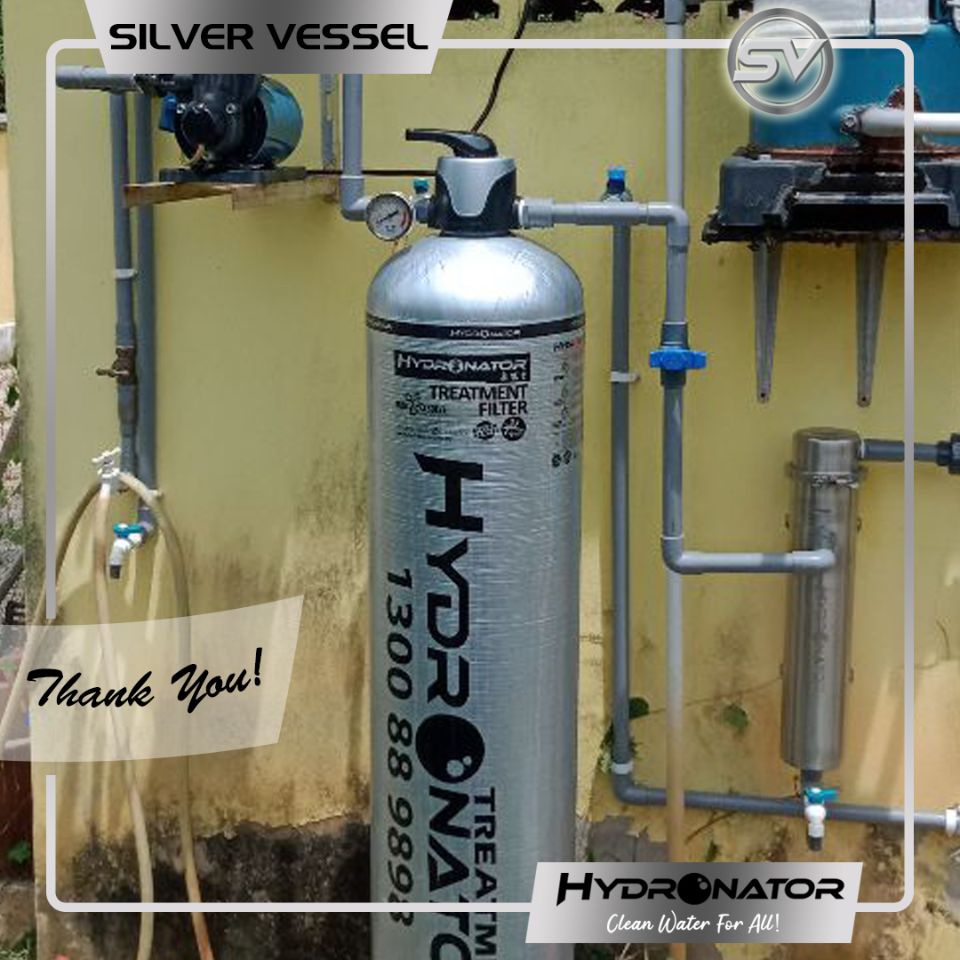

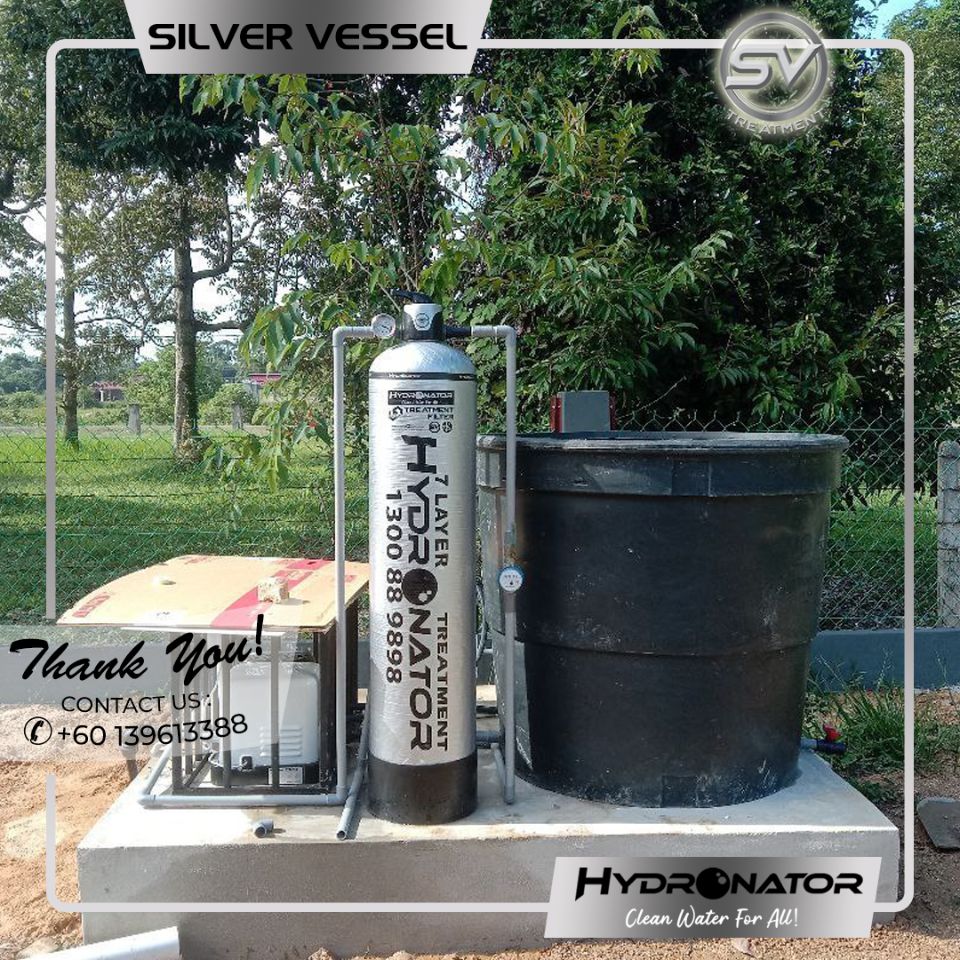

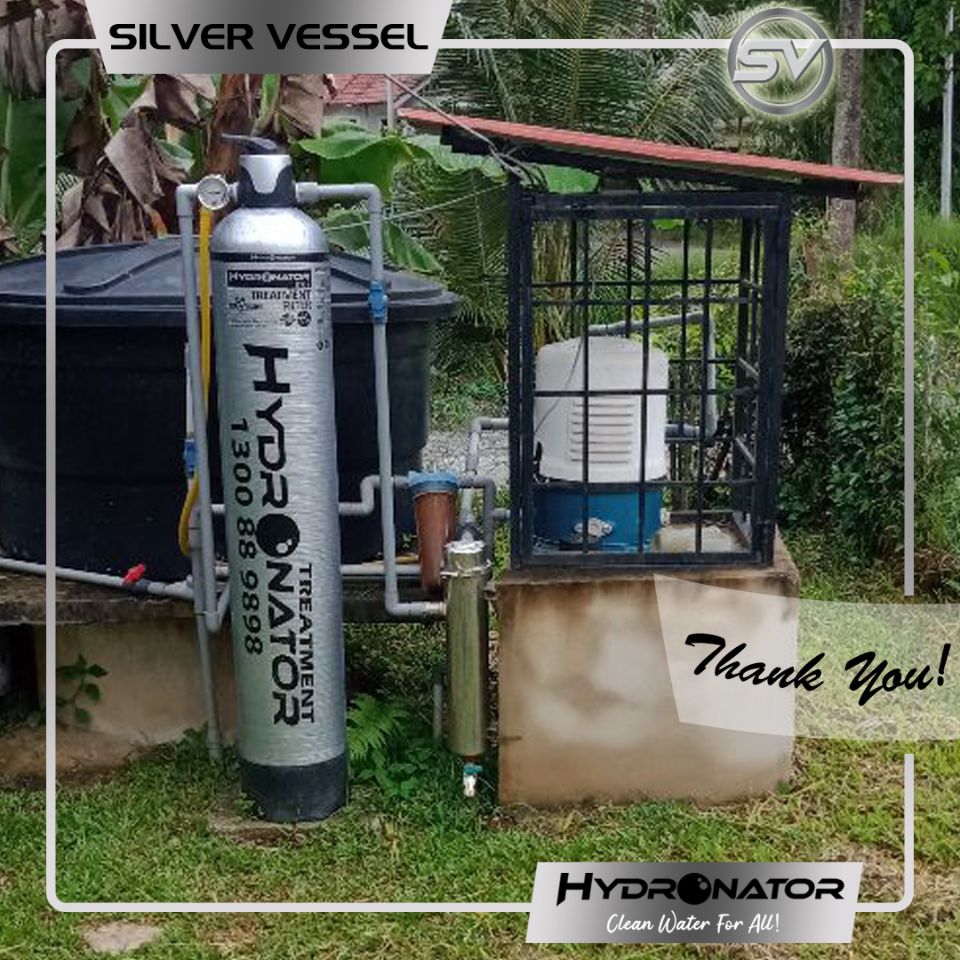

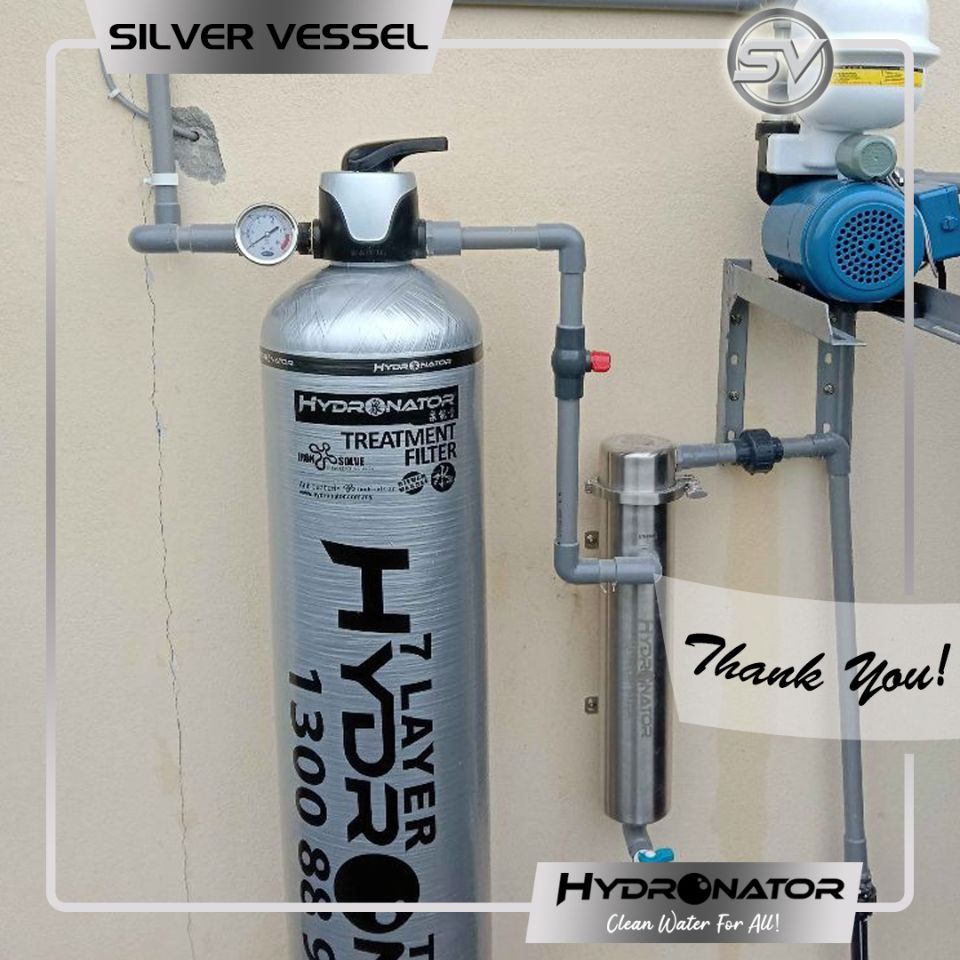

Sample Installation
