Our Treatment Filter come with
5 series for you to choose !
By using Treatment Filter,
you're able to get the clean water

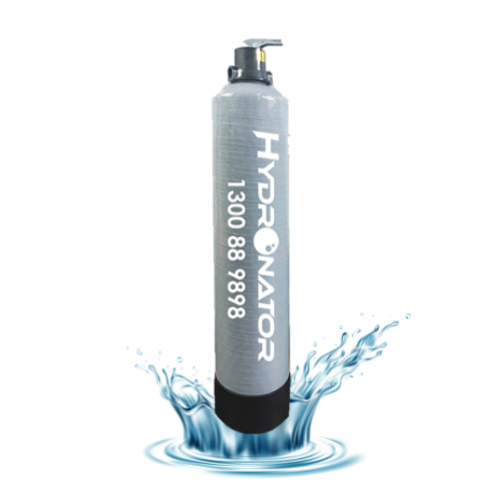

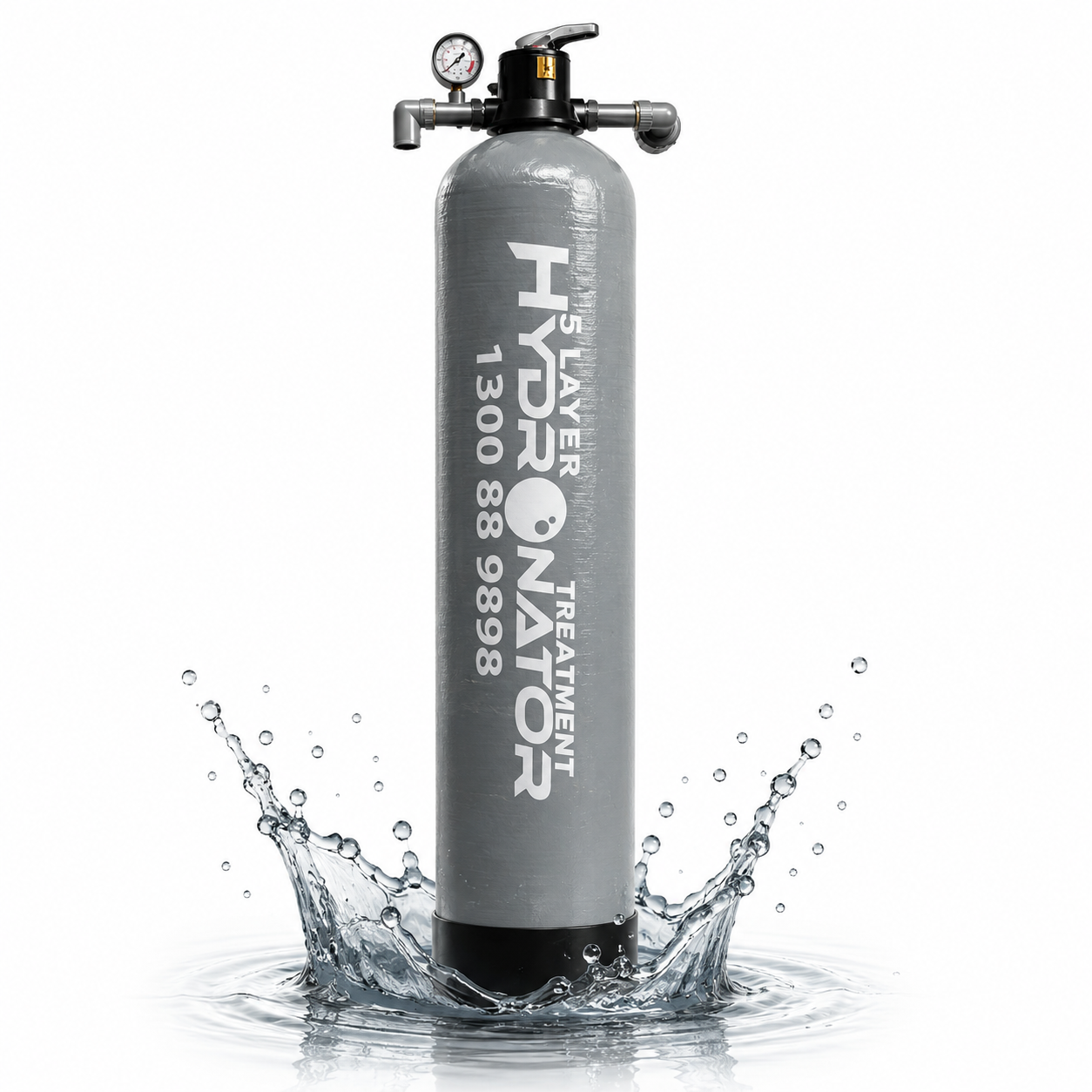

Basic Treatment
Features
- 5 Layers of Treatment Filtration
- Remove suspended sollds and reduce the turbidity of water
- Adsorption and removal of water color residual chlorine colloid and iron ions, etc.
- Convenient operation, long-term stability and easy management
- Widely used in water treatment systems with excessive iron and manganese standards
- 5 Years warranty for pressure tank
- 1 Year warranty for MPV Valve
Specifications
|
|
|
|
| |||||
|---|---|---|---|---|---|---|---|---|
|
|
Model | MPV Valve | Valve Size (mm) |
Tank Volume (L) | Tank Coating | Size H x D (inch) | Filter Media | Est. Service Life |
| BS3000T | Standard 3 Steps | 25 | 48 | No | 44 x 10 | 5 Layer Treatment | 1 - 2 Years | |
| BS4000T | Standard 3 Steps | 25 | 62 | No | 54 x 10 | 5 Layer Treatment | 2 - 3 Years | |
| BS5000T | Standard 3 Steps | 25 | 85 | No | 52 x 12 | 5 Layer Treatment | 3 - 4 Years | |
| BS6000T | Standard 3 Steps | 25 | 106 | No | 54 x 13 | 5 Layer Treatment | 4 - 5 Years |
* Standard of Filtration Flow rate depend on water source quality
* Operating water pressure: 0.8 ~ 3.8 bar
Treatment Filtration Rate
| Model | Filtration Flow Rate
(Heavy) | Filtration Flow Rate
(Standard) | Filtration Flow Rate
(Light) | Backwash Flow Rate | |
| 18 m³ / hr / m² | 24 m³ / hr / m² | 30 m³ / hr / m² | 40 m³ / hr / m² | ||
| BS3000T | 12 lpm 0.72 m³ / hr | 16 lpm
0.96 m³ / hr | 20 lpm
1.20 m³ / hr | 26 lpm
1.58 m³ / hr | |
| BS4000T | 15 lpm
0.90 m³ / hr | 20 lpm
1.20 m³ / hr | 25 lpm
1.50 m³ / hr | 33 lpm
2.00 m³ / hr | |
| BS5000T | 21 lpm
1.26 m³ / hr | 28 lpm
1.68 m³ / hr | 35 lpm
2.10 m³ / hr | 47 lpm
2.80 m³ / hr | |
| BS6000T | 24 lpm
1.44 m³ / hr | 32 lpm
1.92 m³ / hr | 40 lpm
2.40 m³ / hr | 53 lpm
3.20 m³ / hr |

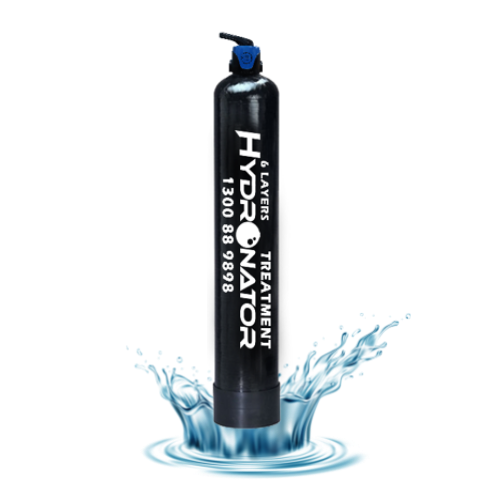

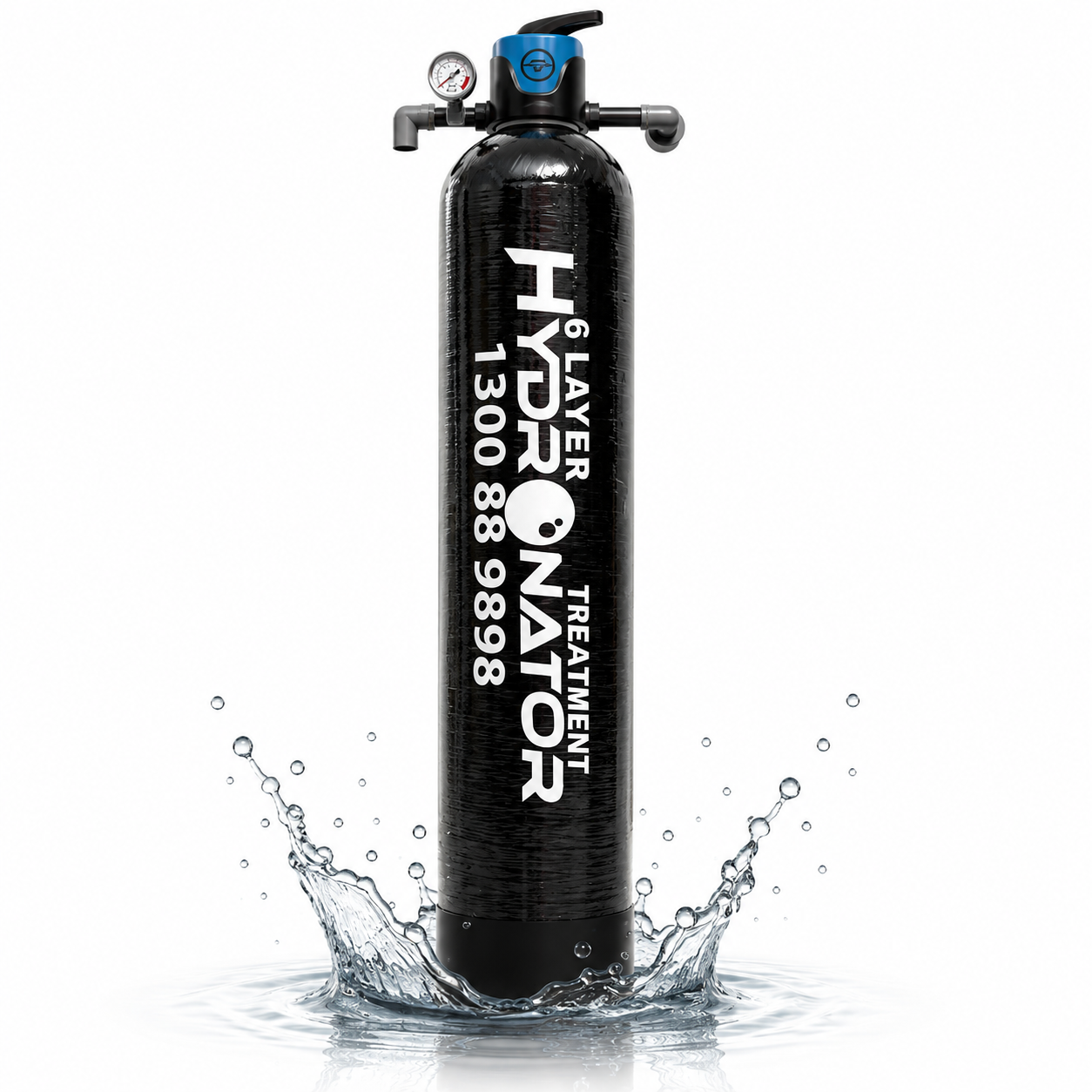

EcoBlack Treatment
Features
- 6 Layers of Treatment Filtration
- Remove suspended sollds and reduce the turbidity of water
- Adsorption and removal of water color residual chlorine colloid and iron ions, etc
- Select the size according to the amount of filtered water
- Convenient operation, long-term stability and easy management
- Widely used in water treatment systems with excessive iron and manganese standards
- 6 Years warranty for pressure tank
- 1 Year warranty for MPV Valve
Specifications
|
|
|
|
| |||||
|---|---|---|---|---|---|---|---|---|
|
|
Model | MPV Valve | Valve Size (mm) |
Tank Volume (L) | Tank Coating | Size H x D (inch) | Filter Media | Est. Service Life |
| EB4000T | 4 Steps with By-pass | 25 | 62 | No | 54 x 10 | 6 Layer Treatment | 2 - 3 Years | |
| EB5000T | 4 Steps with By-pass | 25 | 85 | No | 52 x 12 | 6 Layer Treatment | 3 - 4 Years | |
| EB6000T | 4 Steps with By-pass | 25 | 106 | No | 54 x 13 | 6 Layer Treatment | 4 - 5 Years |
* Standard of Filtration Flow rate depend on water source quality
* Operating water pressure: 0.8 ~ 3.8 bar
Treatment Filtration Rate
| Model | Filtration Flow Rate
(Heavy) | Filtration Flow Rate
(Standard) | Filtration Flow Rate
(Light) | Backwash Flow Rate | |
| 18 m³ / hr / m² | 24 m³ / hr / m² | 30 m³ / hr / m² | 40 m³ / hr / m² | ||
| EB4000T | 15 lpm 0.90 m³ / hr | 20 lmp
1.20 m³ / hr | 25 lmp
1.50 m³ / hr | 33 lmp
2.00 m³ / hr | |
| EB5000T | 21 lmp
1.26 m³ / hr | 28 lmp
1.68 m³ / hr | 35 lmp
2.10 m³ / hr | 47 lmp
2.80 m³ / hr | |
| EB6000T | 24 lmp 1.44 m³ / hr | 32 lmp
1.92 m³ / hr | 40 lmp
2.40 m³ / hr | 53 lmp
3.20 m³ / hr |

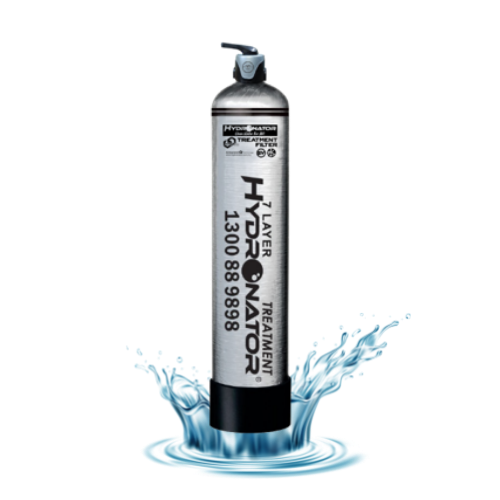

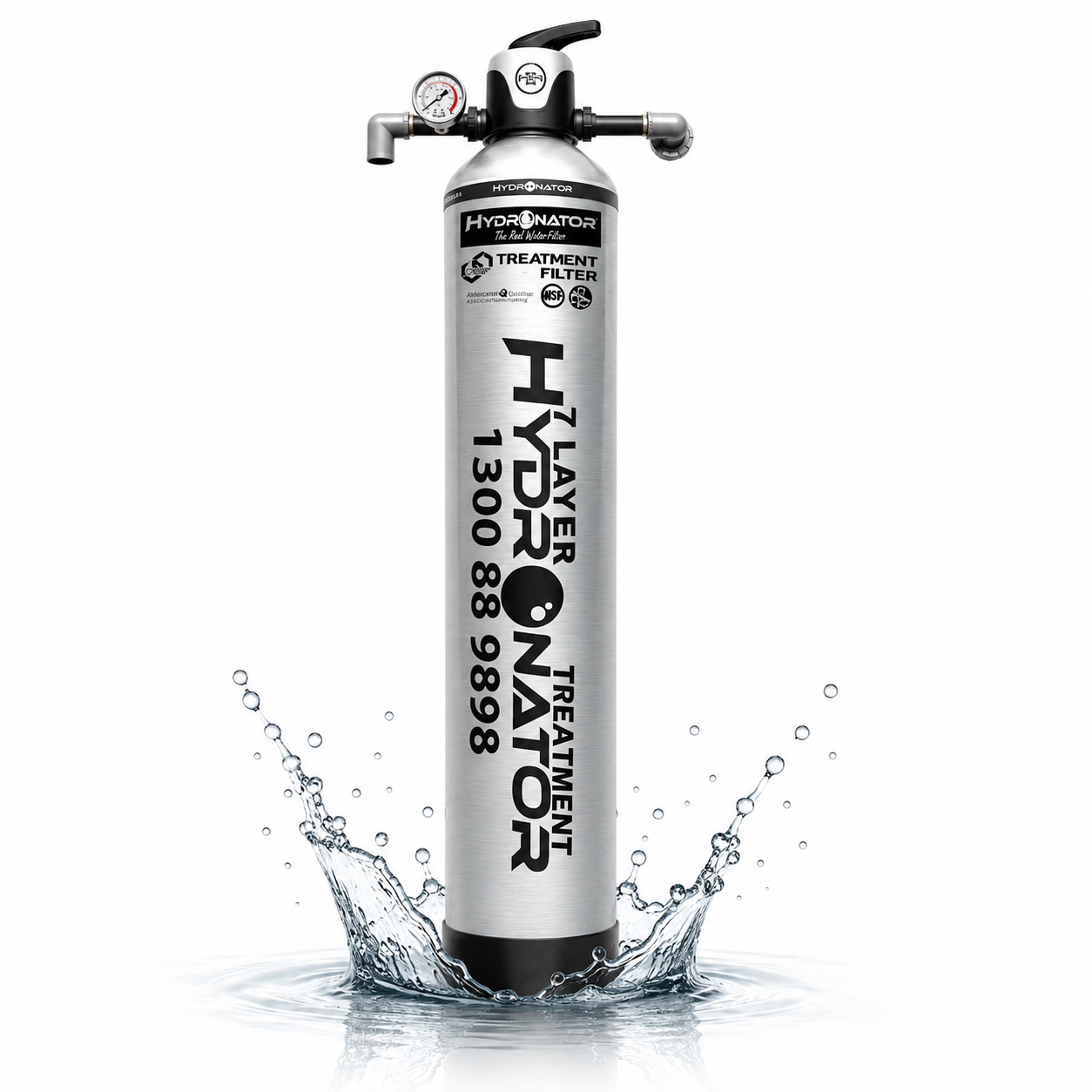

Silver Treatment
Features
- 7 Layers of Treatment Filtration
- Remove suspended sollds and reduce the turbidity of water
- Adsorption and removal of water color residual chlorine colloid and iron ions, etc
- Select the size according to the amount of filtered water
- Convenient operation, long-term stability and easy management
- Widely used in water treatment systems with excessive iron and manganese standards
- 12 Years warranty for pressure tank
- 1 Year warranty for MPV Valve
Specifications
|
|
|
|
| |||||
|---|---|---|---|---|---|---|---|---|
|
|
Model | MPV Valve | Valve Size (mm) |
Tank Volume (L) | Tank Coating | Size H x D (inch) | Filter Media | Est. Service Life |
| SV4000T | 4 Steps with By-pass | 25 | 62 | Yes | 54 x 10 | 7 Layer Treatment | 2 - 3 Years | |
| SV5000T | 4 Steps with By-pass | 25 | 85 | Yes | 52 x 12 | 7 Layer Treatment | 3 - 4 Years | |
| SV6000T | 4 Steps with By-pass | 25 | 106 | Yes | 54 x 13 | 7 Layer Treatment | 4 - 5 Years |
Treatment Filtration Rate
| Model | Filtration Flow Rate
(Heavy) | Filtration Flow Rate
(Standard) | Filtration Flow Rate
(Light) | Backwash Flow Rate | |
| 18 m³ / hr / m² | 24 m³ / hr / m² | 30 m³ / hr / m² | 40 m³ / hr / m² | ||
| SV4000T | 15 lmp
0.90 m³ / hr | 20 lmp
1.20 m³ / hr | 25 lmp
1.50 m³ / hr | 33 lmp
2.00 m³ / hr | |
| SV5000T | 21 lmp
1.26 m³ / hr | 28 lmp
1.68 m³ / hr | 35 lmp
2.10 m³ / hr | 47 lmp
2.80 m³ / hr | |
| SV6000T | 24 lmp 1.44 m³ / hr | 32 lmp
1.92 m³ / hr | 40 lmp
2.40 m³ / hr | 53 lmp
3.20 m³ / hr |

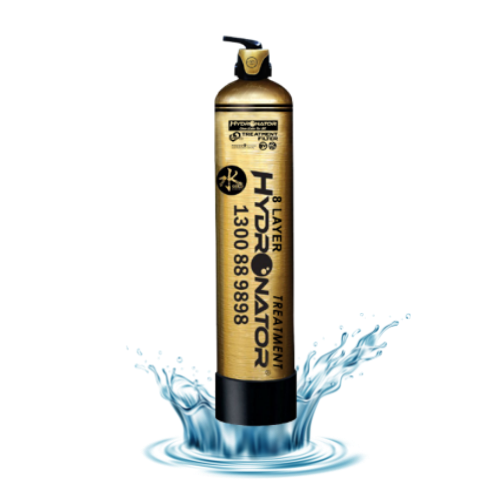

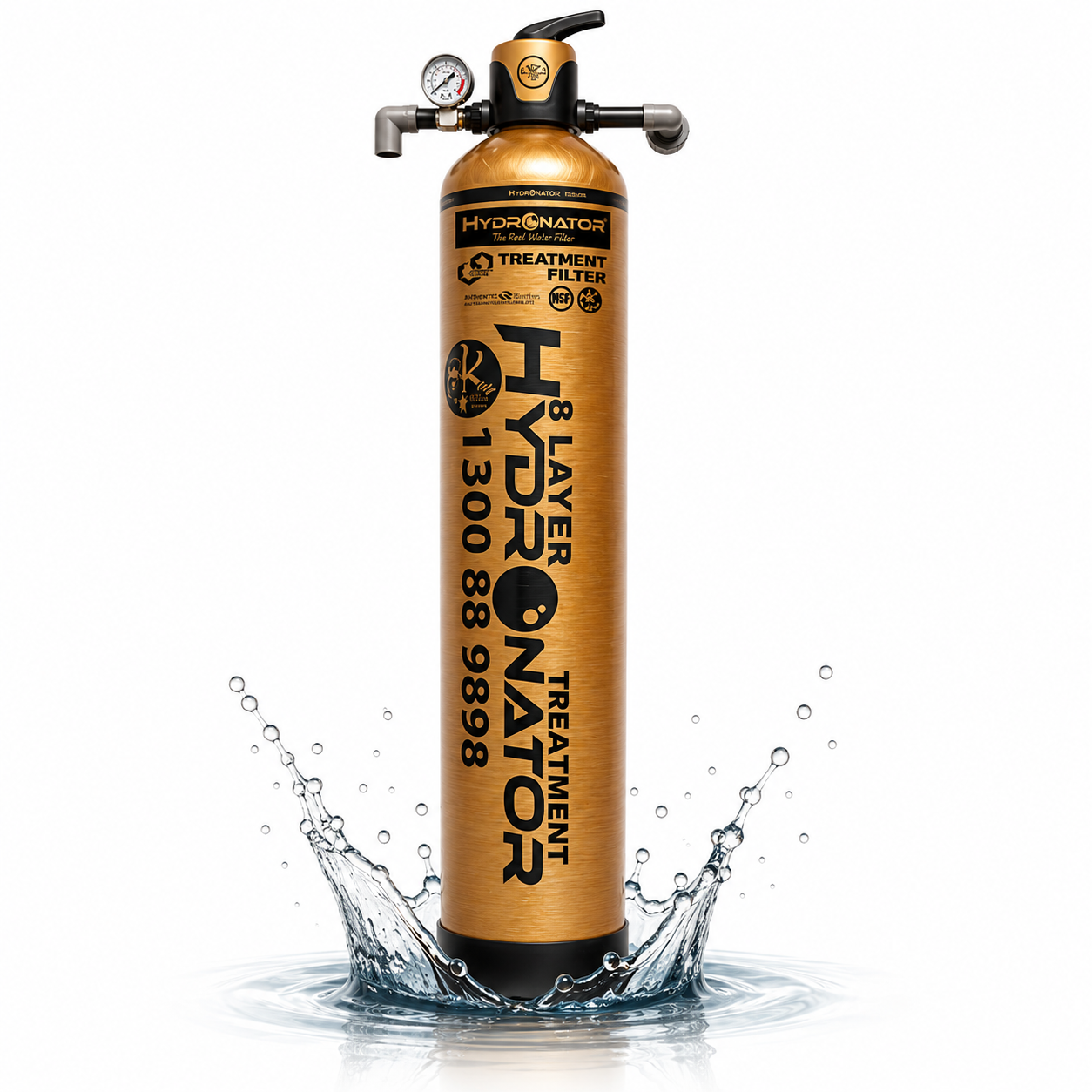

Gold Treatment
Features
- 8 Layers of Treatment Filtration
- Remove suspended sollds and reduce the turbidity of water
- Adsorption and removal of water color residual chlorine colloid and iron ions, etc
- Select the size according to the amount of filtered water
- Convenient operation, long-term stability and easy management
- Widely used in water treatment systems with excessive iron and manganese standards
- 6 Years warranty for pressure tank
- 1 Year warranty for MPV Valve
Specifications
|
|
|
|
| |||||
|---|---|---|---|---|---|---|---|---|
|
|
Model | MPV Valve | Valve Size (mm) |
Tank Volume (L) | Tank Coating | Size H x D (inch) | Filter Media | Est. Service Life |
| CS4000T | 4 Steps with By-pass | 25 | 62 | Yes | 54 x 10 | 8 Layer Treatment | 2 - 3 Years | |
| CS5000T | 4 Steps with By-pass | 25 | 85 | Yes | 52 x 12 | 8 Layer Treatment | 3 - 4 Years | |
| CS6000T | 4 Steps with By-pass | 25 | 106 | Yes | 54 x 13 | 8 Layer Treatment | 4 - 5 Years |
Treatment Filtration Rate
| Model | Filtration Flow Rate
(Heavy) | Filtration Flow Rate
(Standard) | Filtration Flow Rate
(Light) | Backwash Flow Rate | |
| 18 m³ / hr / m² | 24 m³ / hr / m² | 30 m³ / hr / m² | 40 m³ / hr / m² | ||
| CS4000T | 15 lmp
0.90 m³ / hr | 20 lmp
1.20 m³ / hr | 25 lmp
1.50 m³ / hr | 33 lmp
2.00 m³ / hr | |
| CS5000T | 21 lmp
1.26 m³ / hr | 28 lmp
1.68 m³ / hr | 35 lmp
2.10 m³ / hr | 47 lmp
2.80 m³ / hr | |
| CS6000T | 24 lmp 1.44 m³ / hr | 32 lmp
1.92 m³ / hr | 40 lmp
2.40 m³ / hr | 53 lmp
3.20 m³ / hr |

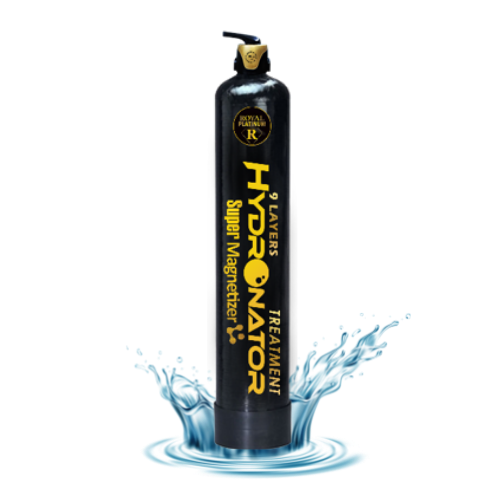

Royal Treatment
Features
- 9 Layers of Treatment Filtration
- Remove suspended sollds and reduce the turbidity of water
- Adsorption and removal of water color residual chlorine colloid and iron ions, etc
- Select the size according to the amount of filtered water
- Convenient operation, long-term stability and easy management
- Widely used in water treatment systems with excessive iron and manganese standards
- 15 Years warranty for pressure tank
- 1 Year warranty for MPV Valve
Specifications
|
|
|
|
| |||||
|---|---|---|---|---|---|---|---|---|
|
|
Model | MPV Valve | Valve Size (mm) |
Tank Volume (L) | Tank Coating | Size H x D (inch) | Filter Media | Est. Service Life |
| RY4000T | 4 Steps with By-pass | 25 | 62 | Yes | 54 x 10 | 9 Layer Treatment | 2 - 3 Years | |
| RY5000T | 4 Steps with By-pass | 25 | 85 | Yes | 52 x 12 | 9 Layer Treatment | 3 - 4 Years | |
| RY6000T | 4 Steps with By-pass | 25 | 106 | Yes | 54 x 13 | 9 Layer Treatment | 4 - 5 Years |
Treatment Filtration Rate
| Model | Filtration Flow Rate
(Heavy) | Filtration Flow Rate
(Standard) | Filtration Flow Rate
(Light) | Backwash Flow Rate | |
| 18 m³ / hr / m² | 24 m³ / hr / m² | 30 m³ / hr / m² | 40 m³ / hr / m² | ||
| RY4000T | 15 lmp 0.90 m³ / hr | 20 lmp
1.20 m³ / hr | 25 lmp
1.50 m³ / hr | 33 lmp
2.00 m³ / hr | |
| EB5000T | 21 lmp
1.26 m³ / hr | 28 lmp
1.68 m³ / hr | 35 lmp
2.10 m³ / hr | 47 lmp
2.80 m³ / hr | |
| EB6000T | 24 lmp 1.44 m³ / hr | 32 lmp
1.92 m³ / hr | 40 lmp
2.40 m³ / hr | 53 lmp
3.20 m³ / hr |
